Product Introduction And Specification

Feature

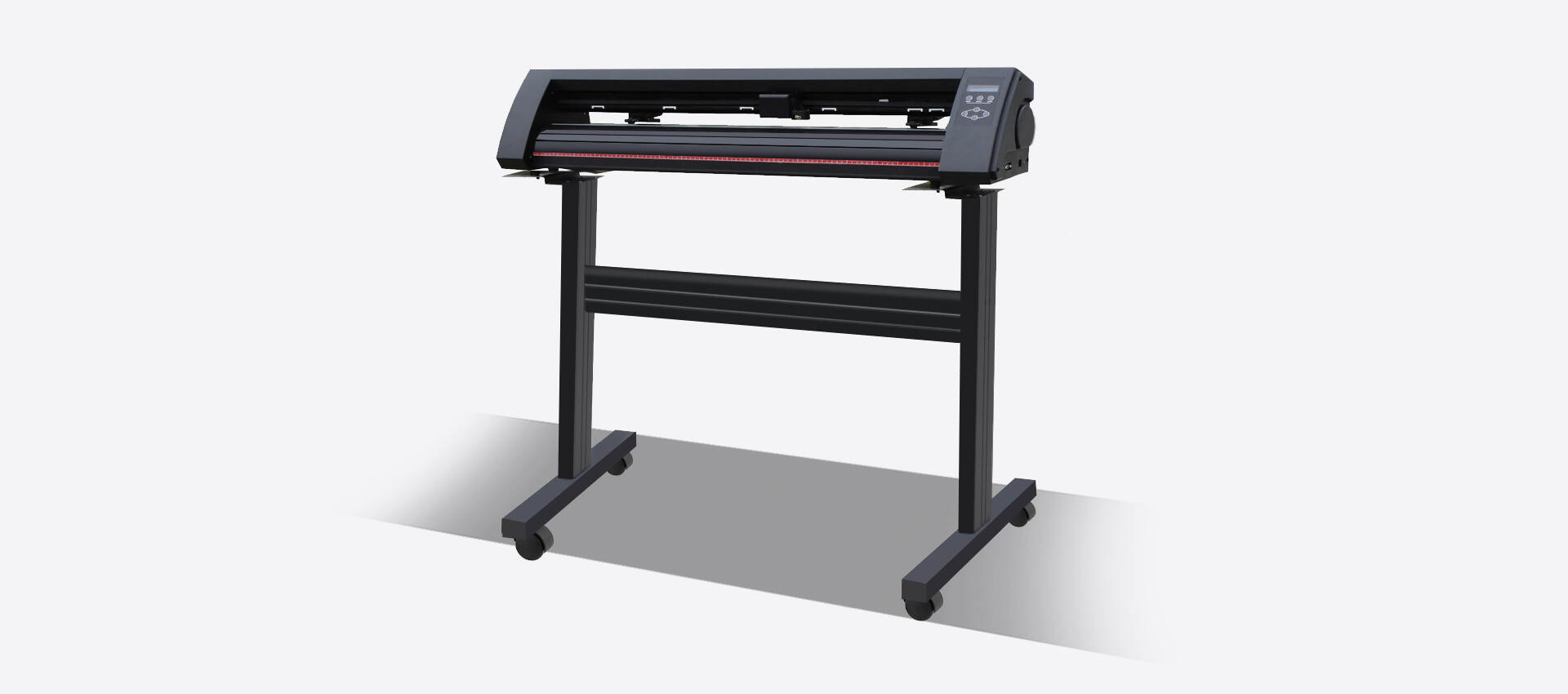

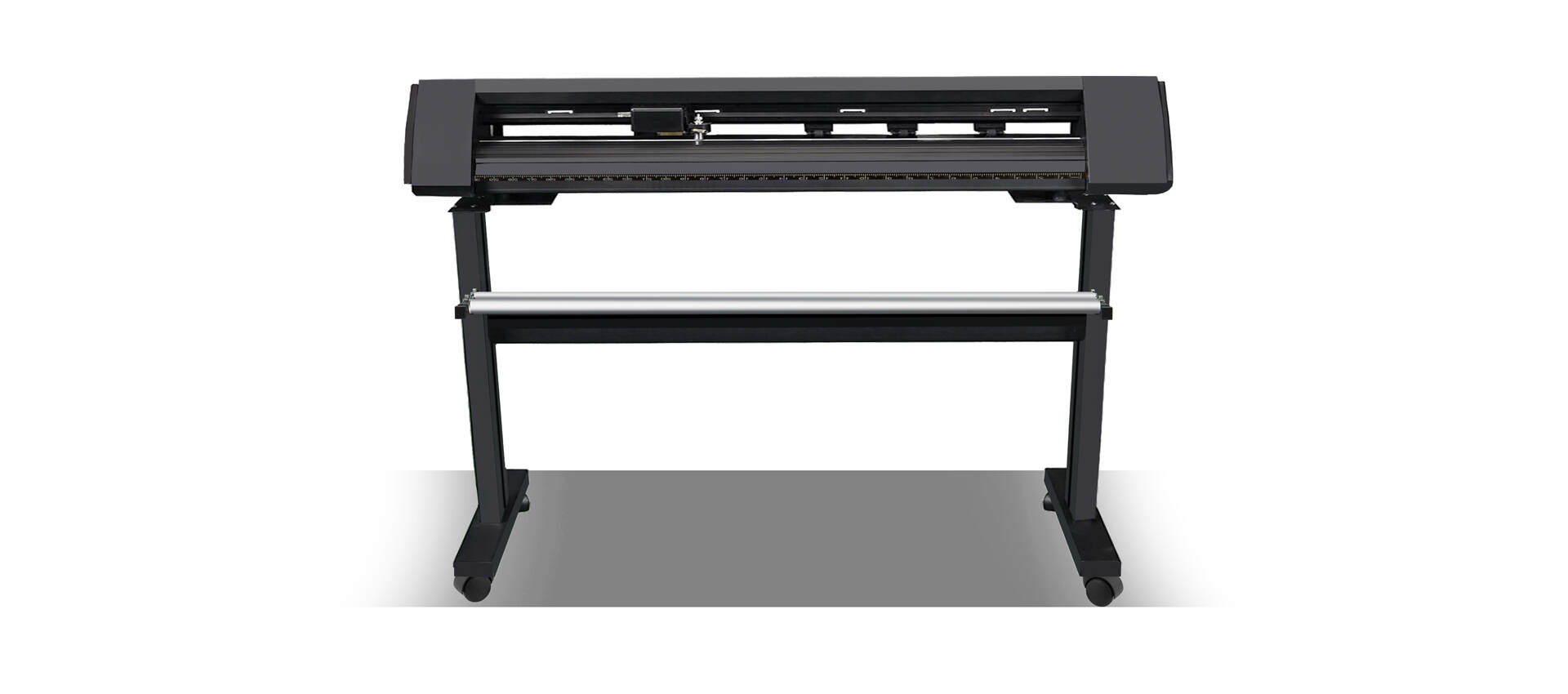

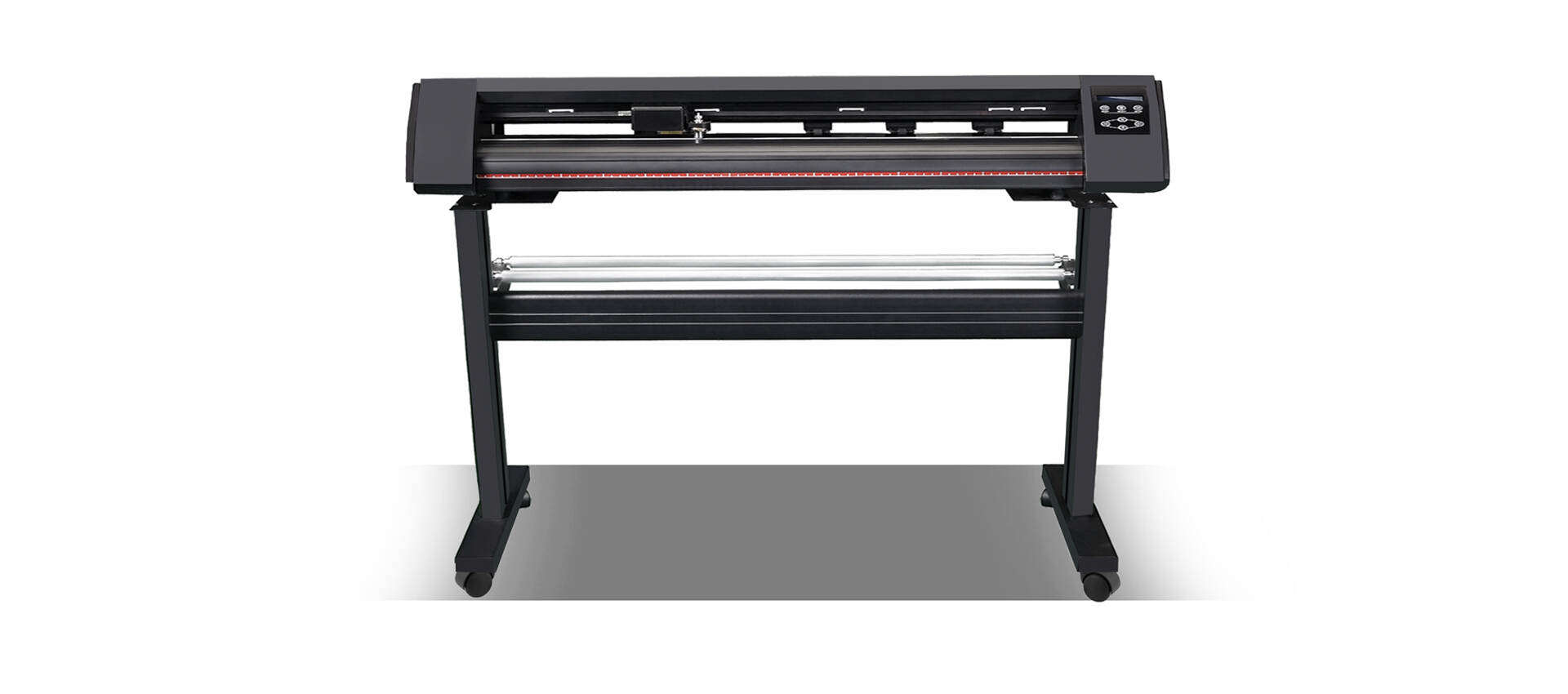

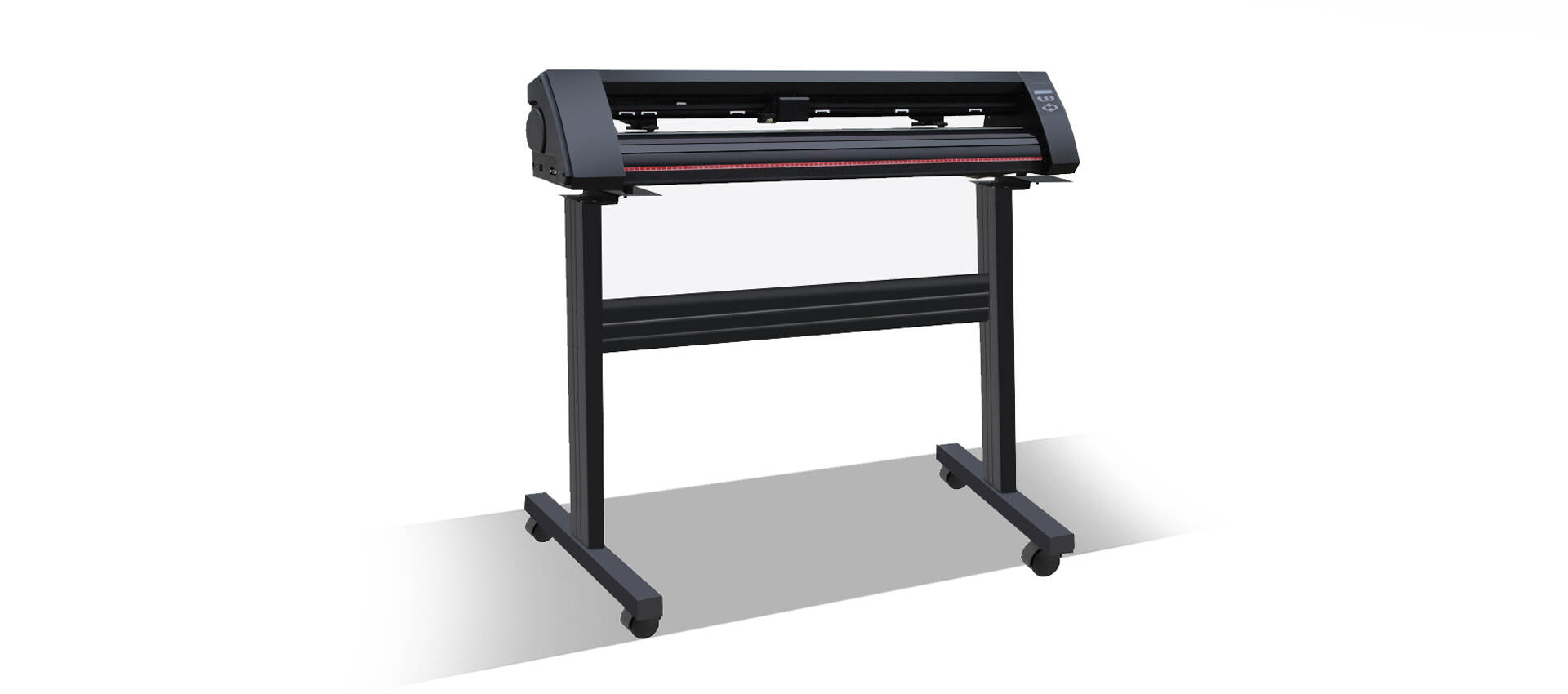

Optical Eyes Cutting Plotter-TC

1. Optical Eyes Cutting Plotter equipped with Optical Eye to support Contour Cut (Work together with Flexi-Starter software to achieve Contour cut)

2. Optical Eyes Cutting Plotter adopts USB 2.0 interface, support hot swappable, and it equipped with serial port to support the long-distance data transmission.

3. Optical Eyes Cutting Plotter adopts 64MB super-memory achieves a long time Offline cutting; meanwhile, the data storage can be achieved even power cut.

4. Optical Eyes Cutting Plotter adopts new high-speed PIC remote control system, higher speed, lower noise.

5. Optical Eyes Cutting Plotter adopts digital force and speed adjustable, direct and steady.

6. Optical Eyes Cutting Plotter adopts humane design, allows adjusting cutting force and speed while working.

7. Optical Eyes Cutting Plotter adopts high-precision “Steel Barbed” Axis, higher accuracy

8. Optical Eyes Cutting Plotter adopts automatic memory of blade force and Speed, adjustable at any time, easy for user.

9. Optical Eyes Cutting Plotter equipped with emergency stop function and stop to return at any time to monitor the cutting quality, easy to operate.

10. The Optical Eyes Cutting Plotter has the function of bulk copy up to 99 copies, which helps to save time and working labor effectively.

11. Optical Eyes Cutting Plotter adopts unique cutting slot make it easier to operate.


Product Specification



Mode TypeOptical Eye Cutting Plotter TC-1261
Maximum feeding size1340mm/52.8 inch
The widest paper for cuting1260mm/49.6 inch
Origin Adjustableyes
Speed600mm/s
Pinch Roller4pcs
InterfaceUSB2.0 & serial
DisplayLCD
Buffer Capacity64MB
MotorStep motor
Resolution0.0254mm/step
Repeatability0.127mm/0.005 inch
Cutting Pressure70-500g Digital Adjustable
PowerAC220V(110V)±15%, <160W
