Product Introduction And Specification

Description

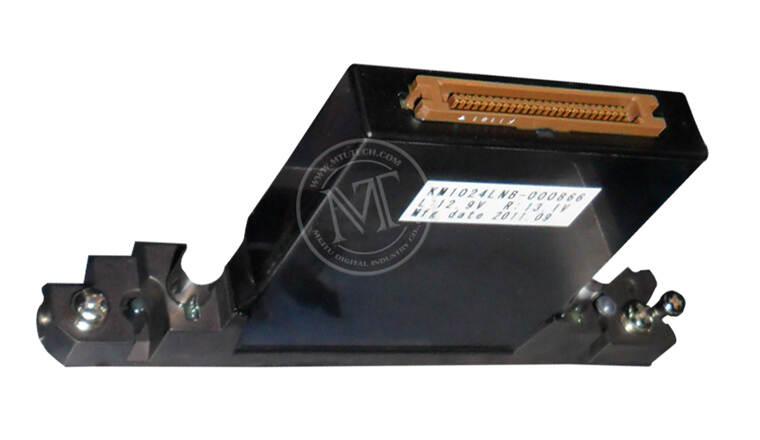

Konica KM1024 printhead for solvent ink

The KM1024 is available with integral heater and ther mistor for use with more viscous inks, including UV types, and al so without the heater for use wi th oil or water based fluids.

The slim design of the head and nat ive resolution of 360dpi make thi s the ideal printhead for use in high resolution or high speed pri nt systems where multiple heads will be required. The desi gn of the head, wi th in-line mounti ngs and ink connect ions, allows them to be mounted ver y close together which results in an easy-to-integrate, very compact desi gn. Mounting the heads thi s close together produces hi gher quality print more consi stently as any angular errors in the medi a movement are minimised.

To enable machi ne builders to utilise the KM1024 qui ckly and efficiently, Konica Minolta has also launched the ICB 1024. This device can dramatically reduce the time and resource required to devel op the datapath and electronics required to drive the KM1024.

Ink type: Solvent ink


Konica KM512 14/35 /42 PL printhead

Konica Minolta 512 Printhead suitable for Seiko Colorpaint 64s, 100s, HP8000S, HP9000S, MYJET, ALLWIN, TECKWIN, etc.

KM512 42pl, KM512 14pl optional

KM512MN
use the head machine:
HP design 9000s, Design 10000s,Oce CS6060,CS6100,Seiko color painter 64S,color painter 100S,Allwin C8,Liyu Apollo PTP-KL,Maxima PZ-KM,DGI saturnJet ST-1806,Flora HJ 3200 Turbo,LJ320P,JHF Visat 3306,Rodin K4320-A,K4320-B

Shear mode, Piezo On-Demand Print Head

Designed for the graphics and industrial markets and with a proven track record in wide format printing and "coding and marking" the XJ128 is the ideal entry level piezo inkjet "drop-on-demand"product.


512 Nozzle with 360 dpi Spacing

High resolution, 360 nozzle per inch spacing has enabled arranging 512 Nozzle on a comactly designed print head. The KM512 series consists of type L, M and S, corresponding to unit drop volume capabilities of 42pl, 14pl and 4pl respectively. The type M and S can be driven in 4 level grey-scale mode for reproducing high quality images with smoother tones.

Compatible with Solvent, UV, Oil ...


Due to its specially designed internal structure, the KM512 series boasts a wide range of ink compatibility, including aggressive solvent inks typically used for super-wide format printers. Inks which have high viscosity at room temperature,such as UV ink, can be heated up to 55 degrees Celsius with the H type's internal heater.


Enabling Comapct Design of Head Mount System

This series is specially designed to have a "wing" structure so that users can precisely align the print heads without difficulty. This feature allows easy combination of page-width printhead units for the purpose of single-pass high-speed printing. The same external design allows interchangability of different type heads on the same mount system

Ink type: Solvent ink

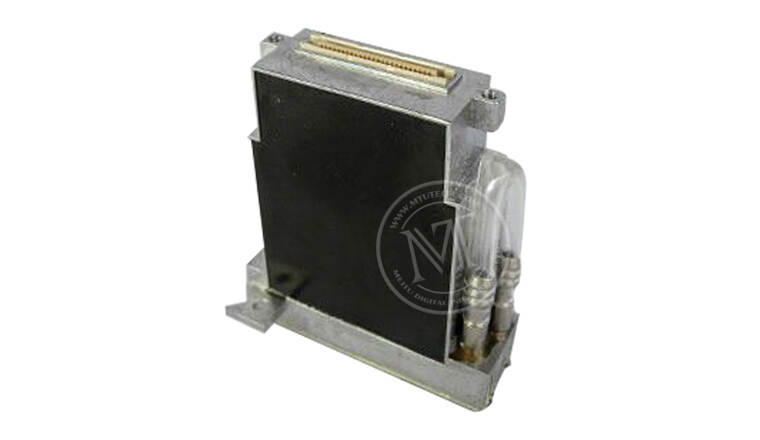

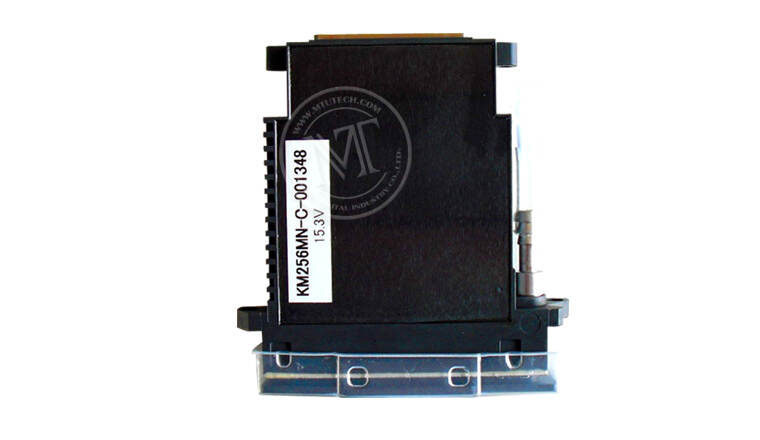

Konica KM256 14 /42 PL printhead for solvent ink

1, KONICA steel with full sprinkler, sprinkler longer life.

2, double into the ink tube, flow pressure evenly. To ensure print quality.

3, the double nozzle arrangement of dislocation structure, inkjet accuracy.

4, attempts to prevent the function of the unique nozzle; nozzle automatic exhaust function to ensure the process does not appear to use plug off Mexico's phenomenon.

5, Konica printhead nozzle is closed, waterproof, anti-aging.

6, manual cleaning nozzle ink pressure devices, flash jet design, auto vacuum cleaning nozzle device, nozzle moisture suction device.

7, high accuracy, fast printing speed, 14pl of precision 1440dpi, 42pl accuracy is 720dpl.

Konica nozzle (KONICA) can be used in ink: You can use UV ink, solvent ink, and all the piezoelectric oily ink.

Ink type: Solvent ink


Konica KM512I Printhead
