Product Introduction And Specification

Description

MT Sublimation Printer includes one brand new printer and one sublimation heater with fume extractor, directly print to the sublimation textile with sublimation ink, and then through sublimation system to appear and fix the color, after this process printed pictures become very bright. No need any sublimation paper more! The printed textile can work inside and out side, and suitable to wash, no fading for the pictures. It can reduce normal sublimation process, save costs and time, give more efficiency! Our Sublimation system available a few size, It can based customer request to produce different size as you want.


Feature

·Far Infrared Blackbody Tube Radiation Electro thermal Heating

·Intelligent PID Temperature Control

·Digital Tension Control

·Feeding and Taking up Are synchronous

·Vacuum Fan Delivery Is Controllable

·Quick Tail Gas Treatment

·Convenient to Maintain

·Easy to Set up and Operate

·Easy to load the media in and out oven during your machine working

·Easy to open the caver to clean inside of oven

·Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.

·Easy to change the active carbon from the filter

·Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs

·High Productivity


Advantage

Exhaust with out any smell, good environment need.
Normal temperture for exhaust, no dangerouse for hot air out.
High Efficiency cold system to make sure the exhaust temperture less then 25 Degree.
Drawer-type device in a timely manner to facilitate the replacement of activated carbon to ensure that the emission of harmful gases.


Application

To Produce Flags, Color Banner, Textile printing etc...
IT IS SIMPLE AND LEAVE OUT HEAT TRANSFER PROCESS ONE PERSON CAN OPERATES WITH HIGH EFFICENCY AND SHORT TIME
LOW COST AND NO NEED OF ANY KIND TRANSFER PAPER, LINER BEAKING THE HIGHEST COSTS PERFORMANCE


Product Specification




Mode TypeOven/Heater
Power 3.8KW
Working Width 1800MM
Blackbody Tube Working Model Far Infrared
Heat Tuble Dimension 2220MM
Working Temperture 25 to 250 ℃
Tension 0 to 1.2Kg
Working Voltage
Take Up working Method
Take Up media diameter (roll to roll)
220~240V 50HZ
Directly out or Roll to Roll.
300mm
Machine package Dimension 3400X1330X880mm
Weight 320Kg
Certification CE Certificated
Package High intensity standard carton package Non Fumigation
Available Printer MT-Refretonic



Mode TypeFume Extractor
Power 360W
Working Voltage 220~240V 50HZ
Package Size 620X565X1100mm
Weight 60 Kg
Input Air temperature >200 ℃
Out put Air temperature <25 ℃
Filter Medium Active Carbon
Certification CE Certificated


Sharing To Instagram And Facebook

Spandex Printing 24
Spandex Printing 20
Spandex Printing 17
Spandex Printing 8
Spandex Printing 25
Spandex Printing 31
Liene Printing 20
Liene Printing 21
Liene Printing 11
Liene Printing 4
Liene Printing 53
Neon Printing 25
Neon Printing 11
Neon Printing 18
Neon Printing 20
Neon Printing 6
Neon Printing 13
Neon Printing 19

Online Inquiry

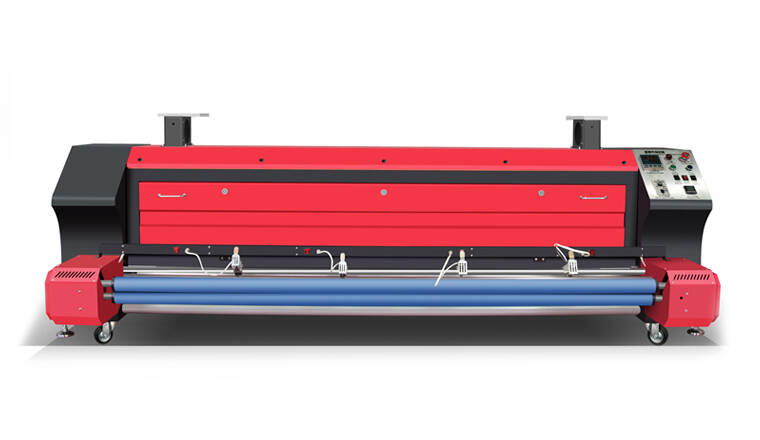

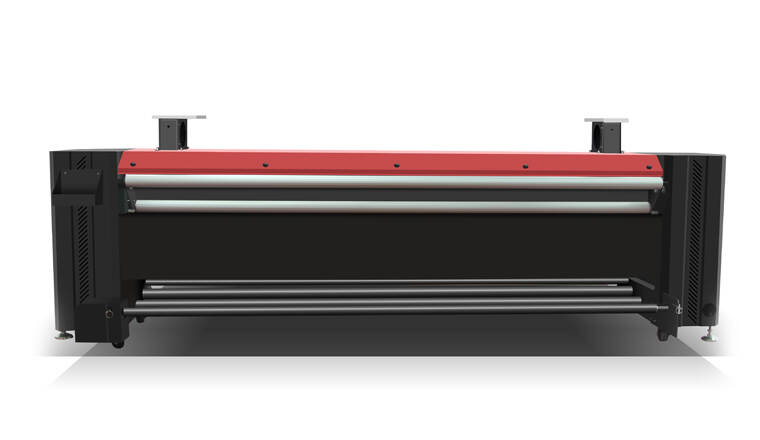

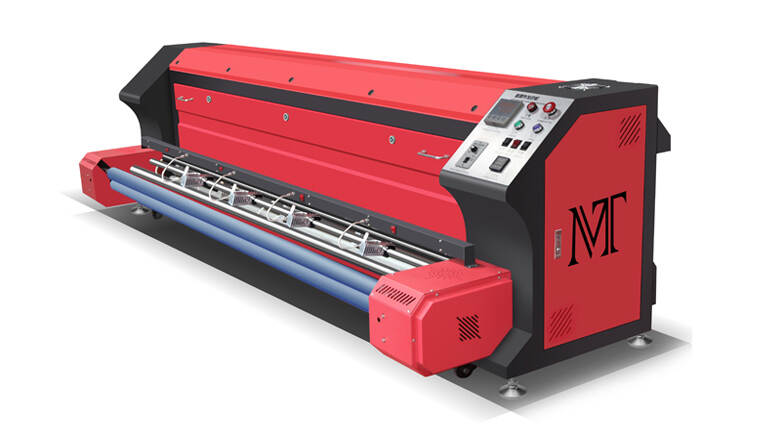

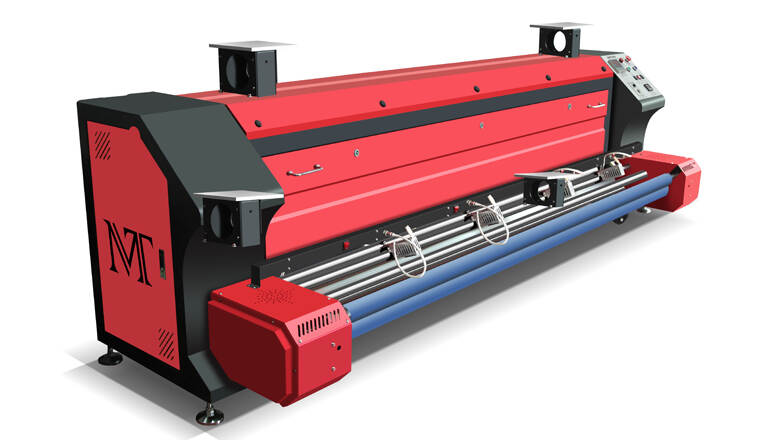

Sublimation Heater & Fume Extractor MT-Heater 1800B
