MT-2512G Flatbed Printer can be equipped with Ricoh Gen5 Printhead with build-in temperature sensor and heater, which ensures precise fluent printing and less cleaning.
Features UV Flatbed Printer
1. High precision Industrial Steel Frame Structure Machine Body
2016 premium high precision industrial UV Flatbed Printer MT-2512G adopts high intension integrated steel frame structure machine body that ensures the machine stands firmly while loading heavy duty rigid materials up to 450kgs. The industrial designed printing table adopts 5cm pure aluminum alloy plate with Teflon coating that is waterproof, wear resistant and heat resistant! Otherwise, the rigid aluminum alloy main girder ensures firm and steady printout. In addition, aluminum printhead carriage frame limits the part precision error to 0.1mm ensures perfect printing output.

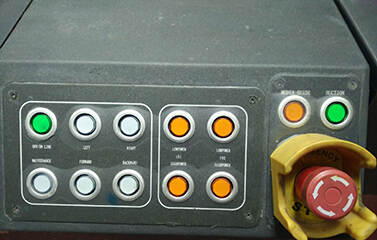

2. Vacuum Suction Control System
The Flatbed UV Printer MT-2512G was designed totally 7 Vacuum Suction Areas. There are 6 vacuum suction areas for fix rigid material printing and the other one is for flexible material printing. We can through adjust and control the suction area or suction strength to ensure various materials remain in the best condition while printing.
3. Magnetic Grid and Magnetic Grating
Our MT-2512G UV Flatbed Printer uses a same technology with Swiss Brand “ SwissQPrint”. That is magnetic grid and magnetic grating equipped on each side of the X-axis that ensures high stable and high precision while UV flatbed printer printing.
4. Imported Spare Parts
To unsure the machine quality, we adopts many Import Spare Parts on this UV Flatbed Printer MT-2512G, such as Japanese THK guide rail, UK main filter and disk filter, Germany negative pressure pump, Japanese NSK bearing and screw and UK UV Lamp for 800 to 1000 working hours.
5. UV Lamp Power Control System
The MT-2512G UV Flatbed Printer UV lamp system adopts 3 grades switchgear to control the strength of UV Lamp Power, there are standby function, low power function and strong power function. Therefore, There is non-deformation and non-cracking after printing, but rapid drying and long lifetime!
6. THK Linear Guide Rail
The MT-2512G UV Flatbed Printer adopts THK 20mm width Linear Guide Rail with two slide blocks that can efficiently increase rigidity and torsion resistance, higher precision and mute silence during printing process. The THK Micro Guide Rail and Screw Rod are introduced to carriage lifting system to deliver easier adjusting and higher precision printing.
7. Ink Supply System
The MT-2512G UV Flatbed Printer equipped with Bulk Ink Supply System with 7.5w ink pump, just ease you mind from worrying filling ink again and again. Otherwise, Low Ink Level Detector gives warning when ink level is in minimum level. Moreover, 2 Phases of Filtration are introduced to the Ink Supply system for better ink fluency and longer printheads service life. In addition, Automatic Ink Circulation System is installed for white ink to prevent printhead clog from ink sediment and ensure consistent long-term image quality!
8. Positioning Pin system
There is a unique Media Positioning Pin and one-button Pneumatic Controller installed in this UV Flatbed Printer MT-PP3220K! It provides accuracy and convenience respectively for panel loading and panel positioning. This function also avoids any deviation of repetitive printing.

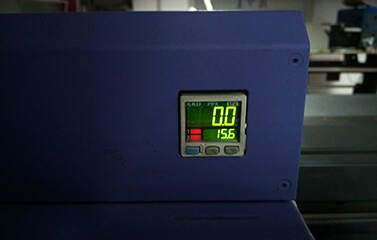

9. Negative pressure system
This Self-developed Negative Pressure System provides vacuum ink supply function that delivers high fluency ink flow, hassle-free continues printing without missing nozzle. The negative pressure control board also can detect negative value and adjust it automatically by itself. This function satisfy long time continue printing jobs!

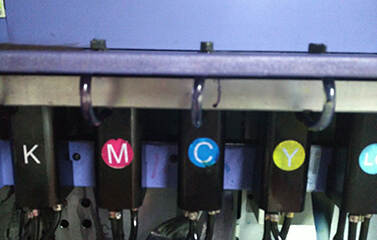

10. Individual Color Purging System
MT-2512G UV Flatbed Printer equipped with individual Color Purging System minimizes UV ink consumed while cleaning printheads. It also can avoid waste ink and air leak when UV Flated Printer power off.
11. Automatic Anti collision System
UV Flatbed Printer MT-2512G integrated Anti-collision Sensor in each side of printhead carriage to prevent the printhead from unexpected damage. Those sensors automatically detect the printing plate or any force on the way going. It prevents any possible strike to the UV printheads.
12. White Ink Circulation System
This Circulation System can help White Ink circulate automatic by customer setting in the UV Flatbed Printer software, this result is effective elimination sediment of white ink to protects UV printihead from clogging situation and ensure consistent long term image quality!
13. Servo Motor and Servo Driver
The UV Flatbed Printer MT-2512G equipped with 400w Original Fuji Servo Motor ensures accurate and stable X-axis motion movement. In addition, Dual Servo Motor for Y-axis ensures printing stability and easily handles heavy-duty printing jobs.
14. Automatic Printing Height Detect System
The UV Flatbed Printer MT-2512G is using automatic media sensor for Z-axis to detect printhead height automatically. Once the media sensor touches printing material, the carriage will stop dropping immediately, then adjust and keep suitable distance between printing material and UV printhead nozzle automatically. Therefore, this function will improve printing quality. Otherwise, the UV printhead Height can be adjusted manually during machine working. Pause the UV Flatbed Printer to adjust the height and then click continue printing. The maximum printing thickness is 100mm can be print by UV Flatbed printer MT-2512G. (150mm is optional)
Industries Application of MT UV Flatbed Printer
UV Flatbed Printer can be use for various industries, such as building decoration industry, glass industry, mark and sign industry, exhibition industry, rigid paperboard packing industry, leather, art-ware industry, furniture industry etc.
And for more applications, the UV printing materials could be: glass, ceramic, ceiling, aluminum sheet, wood board, door sheet, metal panel, billboard, acrylic panel, Plexiglass, paper board, foam board, PVC expansion board, corrugated cardboard, flexible materials such as PVC, canvas, cloth, carpet, reflective film, leather, Aluminum Panels, Wall Panel, PVC Panels, Organic Board, Ceramics, Chevron Board, Metal Board, fiber board, Plastic, Brick, Stone, Home and Office Decoration, Electric Appliances Shell, Wall Decoration, Furniture, Tile, Gift, 3C Product, Oil Painting And Fresco, Sliding Door And Wood Door, Wedding Photography and all kinds sheet materials and coiled materials, etc.
1. It is required to keep machine workshop clean without dust.
2. It is required to equip air conditioner and humidifier for machine working room, to keep temperature between 20 ℃ and 28 ℃, moisture between 40% and 60%.
3. It is required every day to check the input power of machine, to ensure stable single phase AC 220V power.
4. It is required to use cleaning flush to clean printhead nozzles every day, in order to keep printhead in good condition
In China even the whole world, MT Digital Industry Co., Ltd. is one of the best UV printer manufacturer. We have owned international brands "MT" and "Refretonic", MT manufactory is directly located in Shanghai, so MT manufactory can get the best supporting equipment for MT UV printer, thus the MT UV printer can ensure the superior quality, so the performance ratio is very high.
MT Digital Industry Co., Ltd. is one of the best leading manufacturer, supplier and exporter of UV printing machine in China. We produce different UV printer series (UV Flatbed Printer, Hybrid UV Printer and Roll to Roll UV Printer), thus we supply the UV Printer to decoration industry, advertising industry, signage industry, glass industry, acrylic industry, wood industry, ceramics industry, MDF industry, leather industry, corrugated cardboard industry, wallpaper industry, and plexiglass industry. We are complying with European standards and we always import main parts from overseas. MT UV printing machines have gained CE certificate. They are exported to many countries and regions.
1. Maximum monthly production volume is 50 sets for UV Printers.
2. MT payment term for machine order is only T/T 50% as deposit, and 50% paid before shipping.
Packing and Transportation
1. Packing: Inner packed by anti-rust & water-proof plastic bubble film, outer packed by solid wooden crate.
2. Transportation: MT manufactory is located in Shanghai city, nearby the Shanghai port, and MT company enjoys convenient transportation.
1) Advantage by air cargo, maritime shipping, express delivery.
2) The shipping cost is in customer's account.
3) For domestic customers we will deliver machine within 12 to 20 working days after we receive customer's order.
|Mode Type||Konica UV flatbed Printer MT-2512G|
|Max. Media Size||3200 * 2000mm|
|Max. Media Thickness||Up to 100mm|
|Printing speed||Standard Output Mode:78sqm/hr
High Precision Output Mode:46sqm/hr Ultra-high quality output mode:36sqm/hr|
|Printing Resolution||Up to 1440*1440dpi|
|Technology||Piezoelectric Inkjet, UV-curable inkjet, grayscale printing|
|Color Configuration||8 colors at maximum including CMYKWVLCLM, double white colors, spot color, varnish printing|
|Ink types||UV-curing ink|
|drying system||UV mercury lamp|
|Ink tank reservoir capacity||4 liters/color (CMYK,LC,LM,W,V)|
|ink supply system||Automatic Negative Ink Supply System|
|control system||Windows 2000 Workstation / Windows XP / Vista / Windiw 7, 32bit, RAM≥6G|
|RIP software||Photoprint Edition, Onyx(optional)|
|Color management||ICC based color management,adjustable curbe and density|
|File formats||TIFF, JPEG, Postscript, EPS, PDF, etc.|
|Media handling||Flatbed Sheet Feeding, Vacuum Platform Supports Various Rigid Materials. Automatic Media Pneumatic Positioning System Is Used For Easy Loading And Accurate Printing And Unique Opposite Blowing Switch Function Makes Media Unloading Easier (Optional). |
|printing media||Glass, Acrylic, Ceramic Tile, Aluminum, Iphone Case, Plastic, Foam Board, Wallpaper, Wall Art, Sign Advertising, Metal, Paper, Wood, MDF, Furniture, Card, Marble, Golf Products, Gift & Promotion Products, Leather, PU, PMMA, PVC, PP, PE, PTFE, Plexiglass, Panels, Ceiling, Organic Board, Corrugated, Chevron Board, Fiberboard, Brick, Stone, Home & Office Decoration, Electric Appliances Panel, Pottery & Porcelain Tile, 3C Product, Oil Painting, Fresco, Sliding Door, Wedding Photography, Mark And Signs, Exhibition, Etc......|
|air draft||Air Draft Divisions Adapt To The Max. Dimension Of Printing Area|
|Rigid Material size||Standard vacuum table support rigid materials up to 2000 * 3200mm, 100kg/sqm|
|Data interface||High speed USB transmission|
|UV energysource||Dual shuttered UV lamps, independent user-selectable control of shutter aperture and two lamps power levels|
|printer Dimensions||L4300 * W4100 * H1470mm|
|package dimensions||L5000 * W2160 * H1700mm|
|working Temperature||20 to 30℃ (Between This Temperature Is More Effectively Control Satic And Guarantee Printed Quality)|
|Relative humidty||20%-80%, Non-Condensing (Minimum 40% Recommended For Synthetic Media To Avoid Static Electricity, Maximum 70% Recommended For Paper-Based Media To Avoid Buckling)|
|Power supply||Input voltage: 200 to 240VAC, signal-phase, 50/60Hz, 32A max.|
