Description

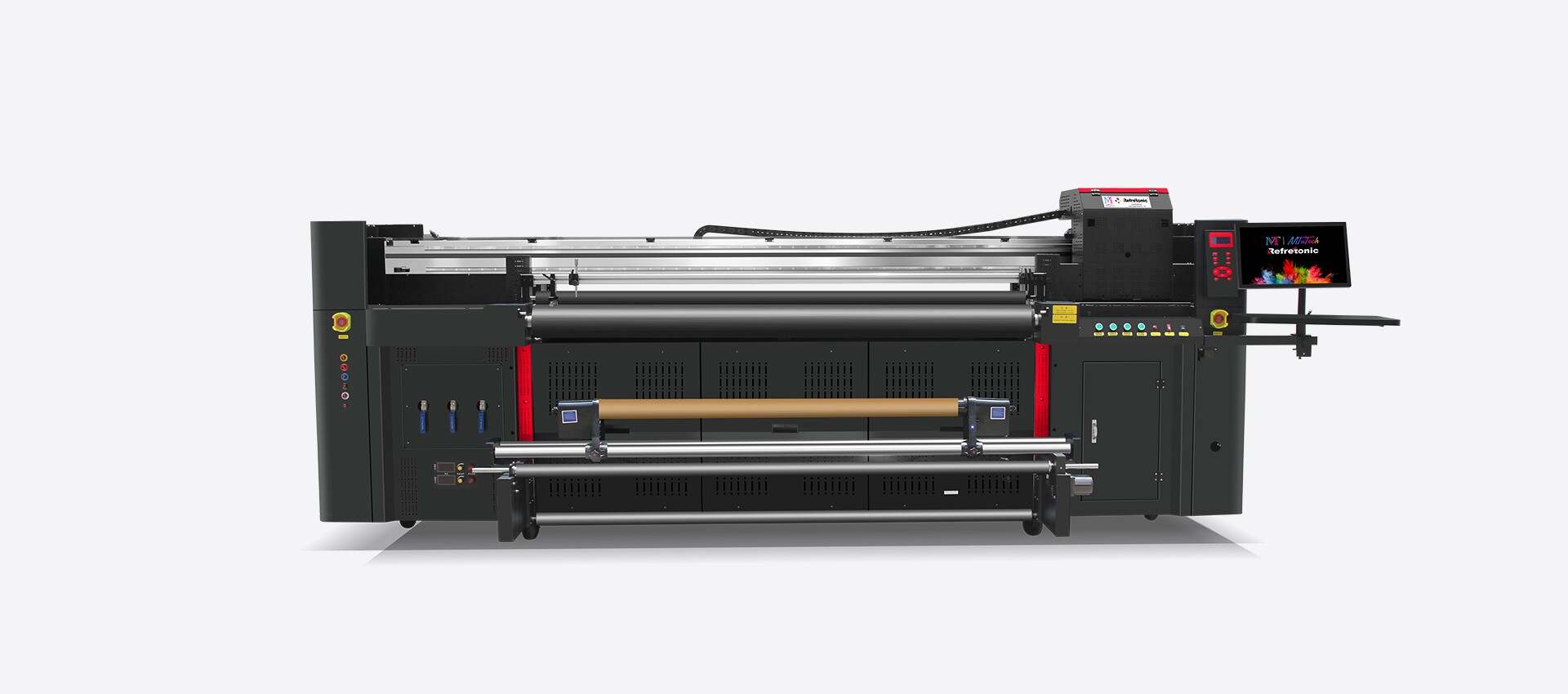

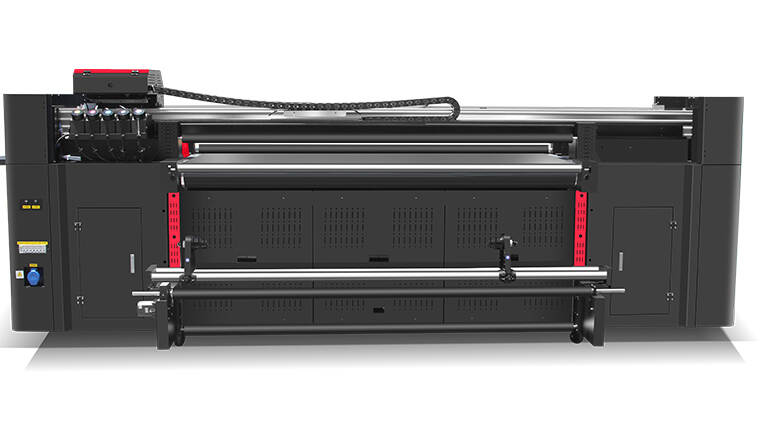

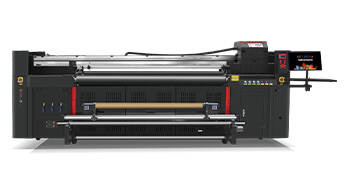

A new generation, quality upgrading Large Format UV Mesh Belt Machine MT-UV1804M is coming which is a dexterous, highly active, energy saving, superb multifuctional and economical model !
Feature
1. Leisai Servo Motor
Professional servo motors integrate high-performance efficiency, improve machine printing speed and accuracy.
2. EPSON-I3200 print head
Epson's unique MEMS technology makes precise nozzles and ink paths, so that the ejected ink droplets are close to a perfect circle while accurately positioned.
3. BYHX-board
Professional industrial inkjet control system, stable and efficient, the choice of major customers on the market.
4. Japan THK-rail
The 2.0 version of the silent guide rail is not easy to deform, has the advantages of fast speed, long service life and low noise.
5. Italian McGaudi-belt
It has the advantages of strong pulling force, high efficiency, low noise, good wear resistance and long service life.
6. German igus-drag chain
Cable protection, modularization, light weight, quiet, not easy to break, and long service life.
7. Chengtu igus-data cable
Special high-flexibility design, resistance to bending, stretching and abrasion resistance.
8. High-precision machined aluminum alloy-ink stack
The new ink stack has been fully upgraded, which is convenient for cleaning, accurate positioning and prolonged service life.
9. All-aluminum high-strength beam-main beam
High-strength, high-precision molds are formed at one time, stable in use and no deformation.
10. LED-UV lamp
Water-cooled UV lamp is a cold light source, no heat radiation, long-term existence in liquid crystal production, environmental protection and pollution-free.
Product Specification
Mode Type | UV Mesh Belt Machine MT-UV1804M | ||
---|---|---|---|
Printhead | Three / Four Epson I3200 Printheads | ||
Number of Nozzles | 1280 Nozzles X 4 Epson I3200 Printheads | ||
Resolution | 1280dpi (Max.) | ||
Height Of Printhead | 5mm | ||
Size Of Ink Droplet | 2.5-21pl | ||
Max. Printing Width | 1800mm | ||
Max. Media Width | 1800mm (Max.) | ||
Real Time Tracking | None | ||
Printing Speed (3 pcs) | 4pass | 9 ㎡/h (CMYK+W+CMYK) | |
6pass | 7.5 ㎡/h (CMYK+W+CMYK) | ||
Printing Speed (4 pcs) | 4pass | 28 ㎡/h (CMYK) | |
6pass | 21 ㎡/h (CMYK) | ||
6pass | 6 ㎡/h (CMYK+W+CMYK) | ||
6pass | 2 ㎡/h (CMYK+W+K+W+CMYK) | ||
Media Feeder | Yes | ||
Media Take-up | Yes | ||
Material | Max. Weight | 100kg | |
Application Type | Wallpaper,soft film,Wall Art,Sign Advertising,Paper,Poster,Promotion Products,Leather,PU,PMMA,PVC,PP,PE,PTFE,Ceiling,Home & Office Decoration,Oil Painting,Fresco,Wedding Photography,Mark And Signs,Exhibition,Flex, Banner,Knife Coated Substrate,Double Side Printing Banner,Advertising Cloth,Adhesive Vinyl,One Way Vision,Mesh,Reflective Banner,Reflective Vinyl,Etc...... | ||
Ink | Type | Import Soft UV Curing Ink / Rigid UV Curing Ink (3 Years Outdoor, 10 Years Indoor, Both Without VOC) | |
Ink Tank Reservoir Capacity | 5 * 2.5 Liter Bulk Bontinuous Ink Supply System | ||
Negative Pressure System | Vacuum Ink Supply Fluency Ink Flow Without Missing Nozzle | ||
Ink Curing System | Two LED Curing Lamps With Water Cooling System | ||
Media Adsorption | Multi-section Intelligent Suction System With Adjustable Strength | ||
Interface | High Speed USB Transmission USB2.0/3.0 | ||
Power | Power Voltage | AC-220V2900W | |
Control Software | Print Console | ||
RIP Software | PrintFactory,Maintop,PhotoPrint,Wasatch | ||
Operation System | Windows 7,Windows 8,Windows 10 | ||
Printing Environment | Temperature 15-35 Degrees, Humidity 30-65 Rh | ||
Picture Type | JPG PSD TIFF | ||
Printer Dimension | W3160*D850*H1480mm | ||
Packing Dimension | W3330*D760*H1020mm | ||
Net Weight | 380kg | ||
Gross Weight | 430kg |
