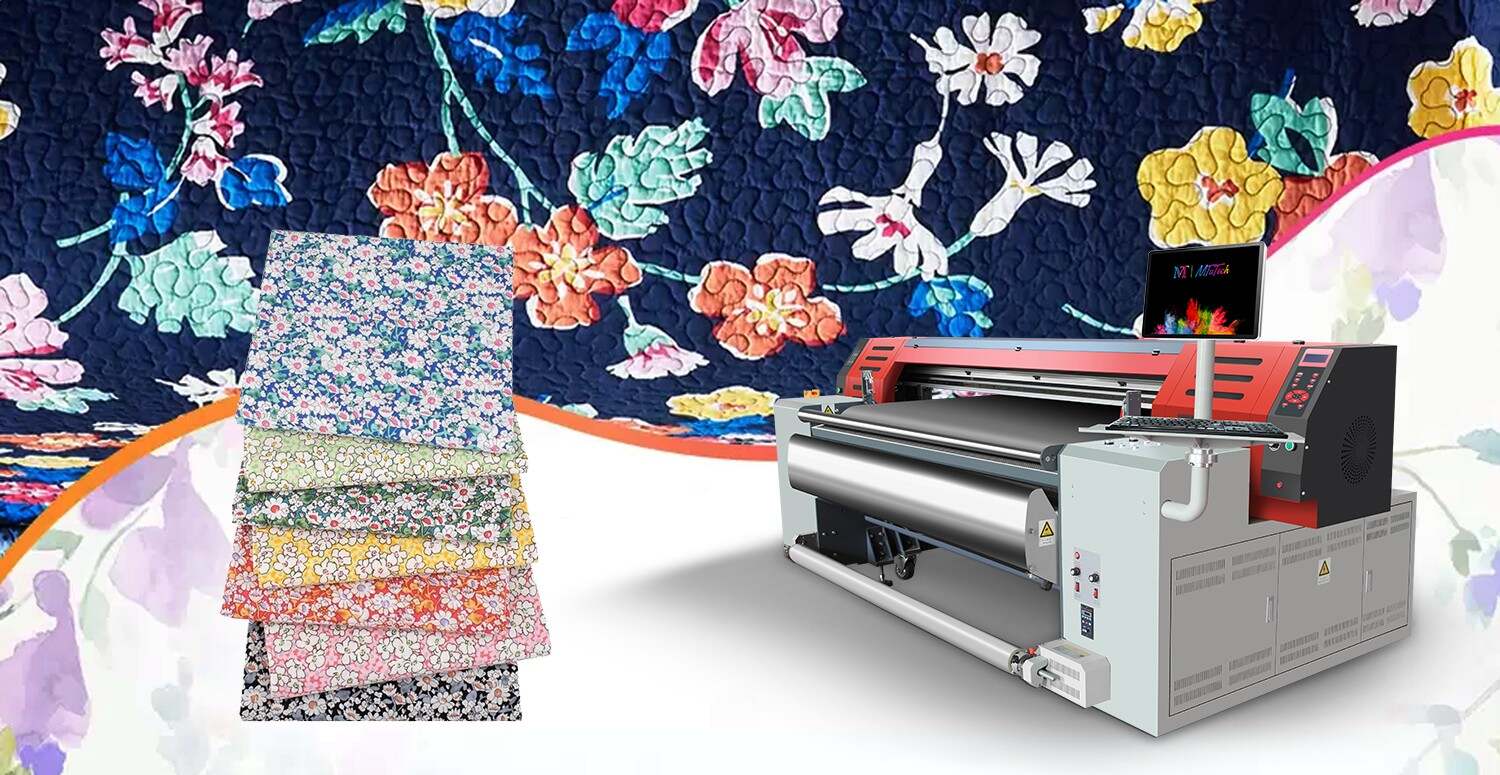

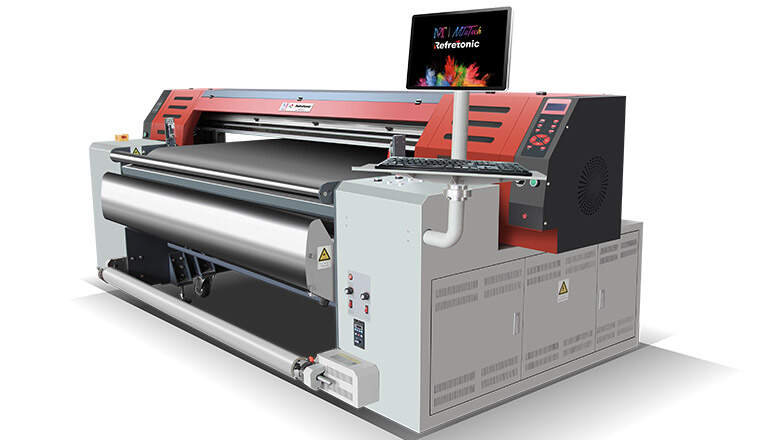

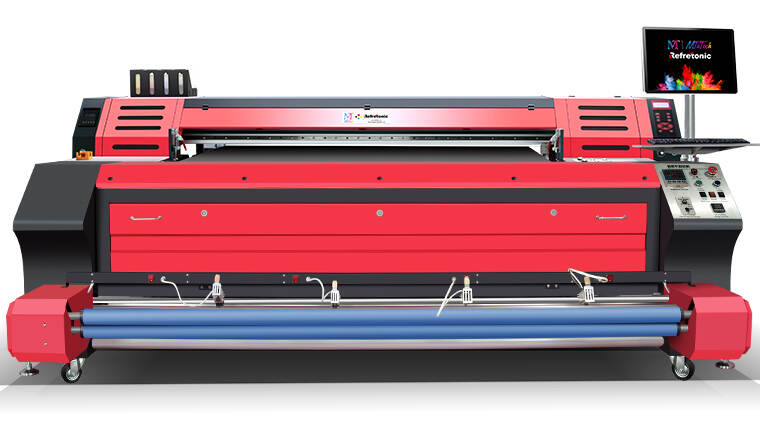

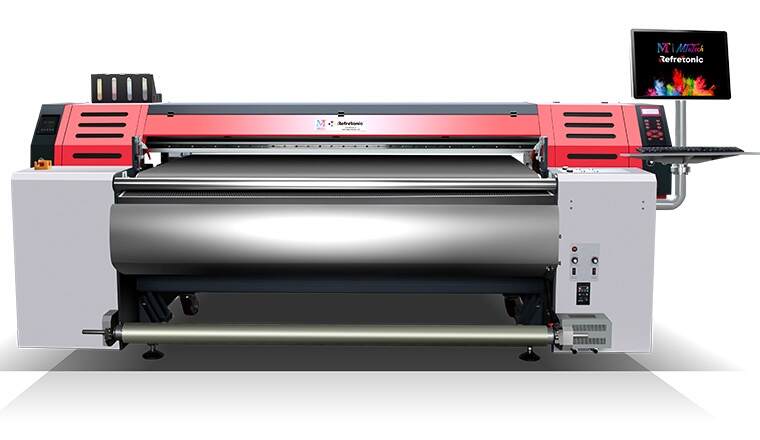

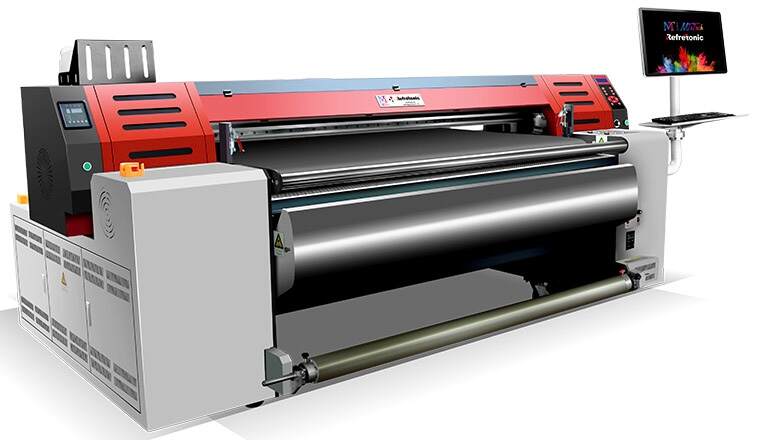

MT Digital Belt Textile Printer is the latest developed direct ink-jet equipment that can print on various textile fabrics directly in recent years. It absorbs the most function and feature of traditional textile print and the transformation method of rubber belt, but to add the auto-washing device and drying system for printed textile fabric.
MT Digital Belt Textile Printer adopts the advanced servomechanism system to assure the precision of print register. Therefore, it realizes MT Digital Belt Textile printing on cotton, flax, polyester, nylon, transfer paper, towel, blanket and man-made fabric and so on. It brings the revolution on textile printing and dyeing technology and really reflects the individual market requirement that small-lot and quick response!
Meanwhile, MT Digital Belt Textile Printer realizes the green process with low energy consumption, non-pollution, noiseless. The print speed becomes faster, the cost of consumption items decrease, so it brings enormous impact on traditional textile printing machine.
1. New inkjet control system is equipped with MT Digital Belt Textile Printer.
It supports 2 kinds of variable dots size setting to provide higher ink covering volume per unit in order to improves higher production capacity.
2. High-speed printing: 2 pcs Epson Dx7 or Dx5 or Ricoh Gen5 printheads optional for MT Digital Belt Textile Printer
Those are the most popular printheads for digital textile printing industrial in the world,especially in Europe. Because, it suit for big lots continue and unstoppable industrial production. It has 7pl dot numbers variable, high durability and high resolution to provid the printing speed up to 6 times of the single printhead. The highest printing speed is 64sqm/h, which can meet the demand of volume production for fabric printing.
3. 1.8m or 3.2m printing width is optional for MT Digital Belt Textile Printer.
MT Digital Belt Textile Printer can match the width on fashion and home textile application request. It can print and produce various colorful banners, canvas and various textile fabrics that can be used both indoors and outdoors.
4. MT Digital Belt Textile Printer provides Professional textile belt carrier system.
This system can carry the textile fabric without tension, suit for both of the stretchable and un-stretchable textile fabric.
5. MT Digital Belt Textile Printer supports various textile dye inks, suit for different types of fabric
Support Reactive inks, can print on silk, cotton, linen, wool fabrics.
Support Acid inks, can print on silk, wool fabrics.
Support Pigment inks, can print on various fabrics without pre-treatment on fabric.
Support Disperse (sublimation) ink, which can print on polyester fabric.
6. 4 or 8 colors ink is available for MT Digital Belt Textile Printer.
It is really support CMYK + 4 special colors printing, be able to get wider color gamut.
7. MT Belt Textile Printer equipped with all in one fabric feeding and rewinding system, plus 3 sets of fabric drying heater unit.
It can be carry the fabric stably feed in and drying the fabric completely after printing but ahead of auto takes up for rewinding, avoiding color blur.
8. All-in-one computer operation platform is equipped with MT Belt Textile Printer.
9. Printhead height is adjustable for MT Belt Textile Printer.
10. No need to make plate, suitable for both sampling and lots size production.
11. MT Belt Textile Peinter equipped with Bulk Ink Continue Supply System.
The Belt Textile Printer installs 8 bulk ink tanks (2L/tank) and 8 cartridges (220ml/pic) that will keep long time stable working with non-stop ink supply.
12. Advanced Belt conveyor device with Auto Deviation Correction system is adopted on MT Digital Belt Textile Printer
A) Import German “Sieglin” equipped for MT textile printer. Conveyor belt is especially for digital textile printing; it can work over 10 years.
B) Belt system automatically adjusted by Siemens PLC sensor and motor.
C) Belt Glue: oil based, prevents fabric dislocation or movement, even elastic fabric can be printed as well.
D) Front and back Belt shafts diameter to 200mm.
E) Bracket props up the belt and makes it smooth.
F) Installing lifting sprayer device to fit varied fabric.

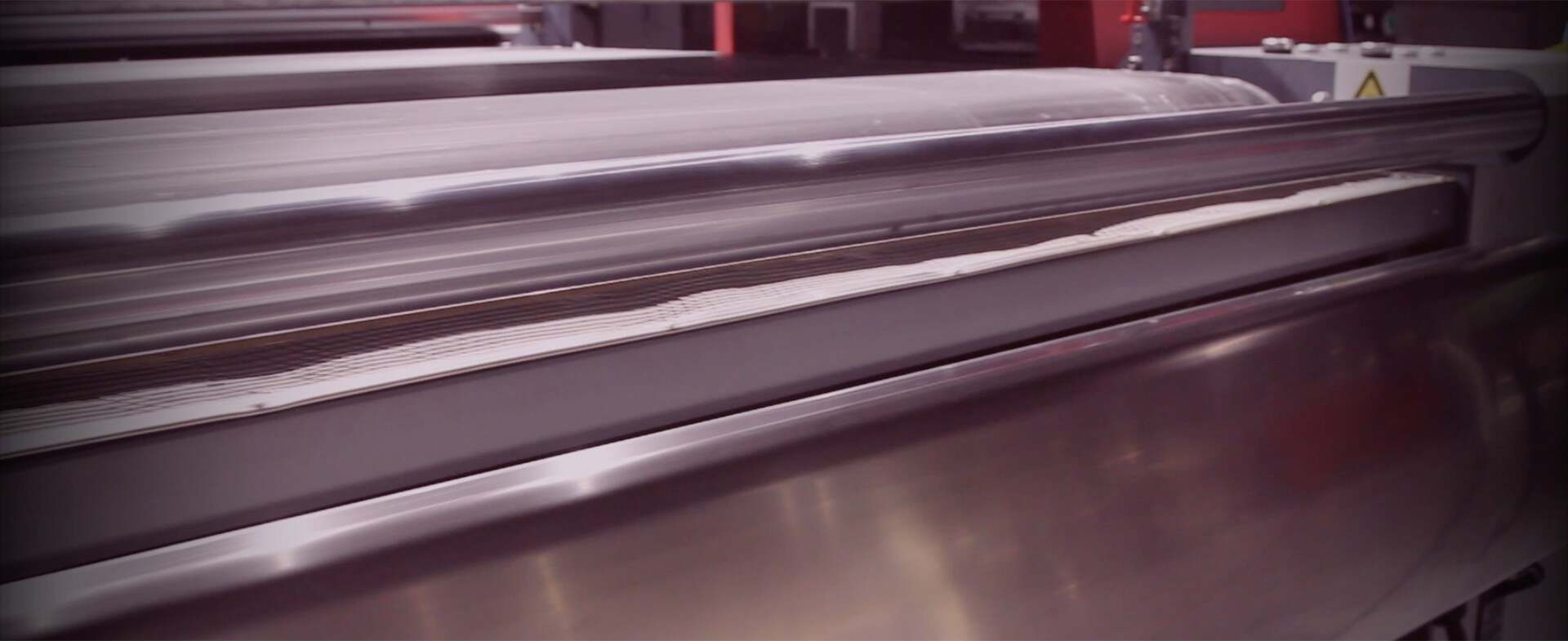

13. Belt auto self-clean & drying system is equipped by MT Digital Belt Textile Printer
A) 2pcs sponge shafts instead of brush to protect the belt better and prolong the belt glue Life span.
B) Water-cycled pipe to keep the water tank and sponge clean.
C) The washing system height and pressure is adjustable.
D) After washing, the PID controlled drying system can dry the belt effectively during continue printing.
14. MT Digital Belt Textile Printer adopts professional RIP.
To realize the RIP and textile printing transmission at the same time and enhance the production efficiency in large scale, including postscript language, photoshop, coreldrew, illustraror, freehand and supporting the file format of TIFF, JPEG, EPS, PS, PDF, DCS2.0 etc.
MT digital belt textile printer is a digital textile printer and developed by MT Digital Industrial with great efforts and great capital invested.
Based on the strong ability and rich experience in ink-jet technology, MT will supply full support for textile ink-jet printer to all users.
MT Series Digital Belt Textile Printer is applied in textile printing Industrial to replace traditional printing techniques, which is the solution of both large batch & small batch, low cost, fast printing requirements. The productive printing speed and width options achieve the possibility of meeting the fabrics printing requirements with digital printing method. Adequately Meeting customers' requirements to printing on below fabric: Cotton, Flax Fabric, Silk Fabric, Polyester Fabric, Flag Fabric, Satin Fabric, Warp Knitting Fabric, Nonwoven Fabrics, Polyester, Chiffon Fabric Digital Textile Printer, Spandex, Canvas, Cloth, Velvet Electronics, Clothing, Bags, Upholstery, Cloth Flags, Banners, Wallpaper, Advertising, Art Paintings, Sofa, Table Cloth, Apparel Fabrics, Home Textiles, Bed Sheets, Curtains, Wool, Cashmere, Silk, Rayon Class, Modal, Leather, Clothing, Towels, Bath Towels, Screens, Shower Curtain, Sleeping Bag, Pillow, Bedding, Outdoor Leisure Products, Hunting Supplies, Beach Products, Toiletries, Engineering, Footwear, Bags and Suitcases...etc.
|Mode Type||Natural Fiber Digital Textile Printer MT-Belt Textile 1807DE|
|Print head||Two DX7/DX5 Drop-on-demand Micro-Piezo Print Heads|
|Number of Nozzles||2880 Nozzles (2 Heads)|
|Color||4 Colors :Cyan, Magenta, Yellow, Black|
|Height of Print Head||2-5mm|
|Size of Ink Droplet||1.5-21 pl|
|Max. Print Width||1800mm|
|Max. Media Width||1900mm (max)|
|Real Time Tracking||None|
|Printing Speed||3pass||44 sq.m per hour|
|4pass||32 sq.m per hour|
|6pass||22 sq.m per hour|
|8pass||16 sq.m per hour|
|Application Type||Sublimation Paper,Heat Transfer Paper,Cotton Fabric,Flax Fabric,Silk Fabric,Polyester Fabric,Flag Fabric,Satin Fabric,Warp Knitting Fabric,Nonwoven Fabric,Chiffon Fabric,Spandex Fabric,elastic fabric,Polycotton Fabric,Canvas Cloth,Velvet Fabric,Sofa Fabric,Curtain Fabric,Wool Fabric,Cashmere Fabric,Rayon Fabric,Modal Fabric,Towel Fabric,Bath Towel Fabric,Screens,Shower Curtain Fabric,Tent Fabric,Pillow Fabric,Cushion Fabric,Upholstery,Advertising Banners,Flag Banner,Textile Wallpaper,Wall Cloth,Art Paintings,Table Cloth,Apparel Fabrics,Home Textile Printing,Bed Sheet Printing,Outdoor Leisure Products,Hunting Supplies Printing,Beach Products Printing,Clothing Printing,Cloth Bag Printing,Sari Printing,T-Shirt Printing,Garment Printing And Footwear Printing...Etc.|
|Ink||Type||Reactive Ink, Acid Ink, Disperse Ink, Pigment Ink, Sublimation Ink|
|Ink Tank Account||8*2.5 Liters continuous ink supply|
|Auto cleanning system||Yes|
|Picture drying system||fan drying system, infrared heating|
|Power||Power Voltage||AC220-240V 50-60HZ or AC110-120V 50-60HZ|
|Control Software||Print Console|
|Three heating sections||Pre-heater, printing bed heater, rear heater|
|Operation System||MS Windows XP & Windows 7|
|Printing Environment||Temperature: 20-25 centi degree, Humidity: 40-60%|
|Picture Type||JPG PSD TIFF|
|Printer Dimension||W3160*D1550 * H1260mm|
|Packing Dimensions||W3620*D2020 * H1520mm|
