How Vision Systems and Servo Motors Transform Precision in UV Printing

Ultraviolet (UV) printing has rapidly become one of the most advanced and versatile printing technologies available today. Known for its ability to print on diverse materials with exceptional clarity, UV printing is widely used in packaging, labeling, signage, industrial marking, and product decoration. Behind the impressive performance of modern UV printers lies a powerful combination of technologies: vision systems and servo motors.

These two components work together to achieve extraordinary precision, speed, and consistency. Vision systems “see” the printing surface and guide the process, while servo motors “move” the printer components with exact control. Their integration allows UV printers to automatically align prints, correct errors in real time, and maintain outstanding print quality even at high production speeds.

This article explores in depth how vision systems and servo motors function inside UV printers, how they interact, the benefits they provide, and why they are essential for high-performance, industrial-grade printing.

What Is a Vision System in a UV Printer?

A vision system is an intelligent optical guidance system that uses cameras, lighting, sensors, and software to monitor the printing process. It allows the printer to visually inspect the substrate (the material being printed on), detect positioning marks, and ensure that the print head aligns perfectly with the target area.

Unlike traditional printers that rely only on mechanical positioning, UV printers equipped with vision systems can dynamically “look” at the material before and during printing. This enables automatic positioning and correction without requiring manual adjustments from the operator.

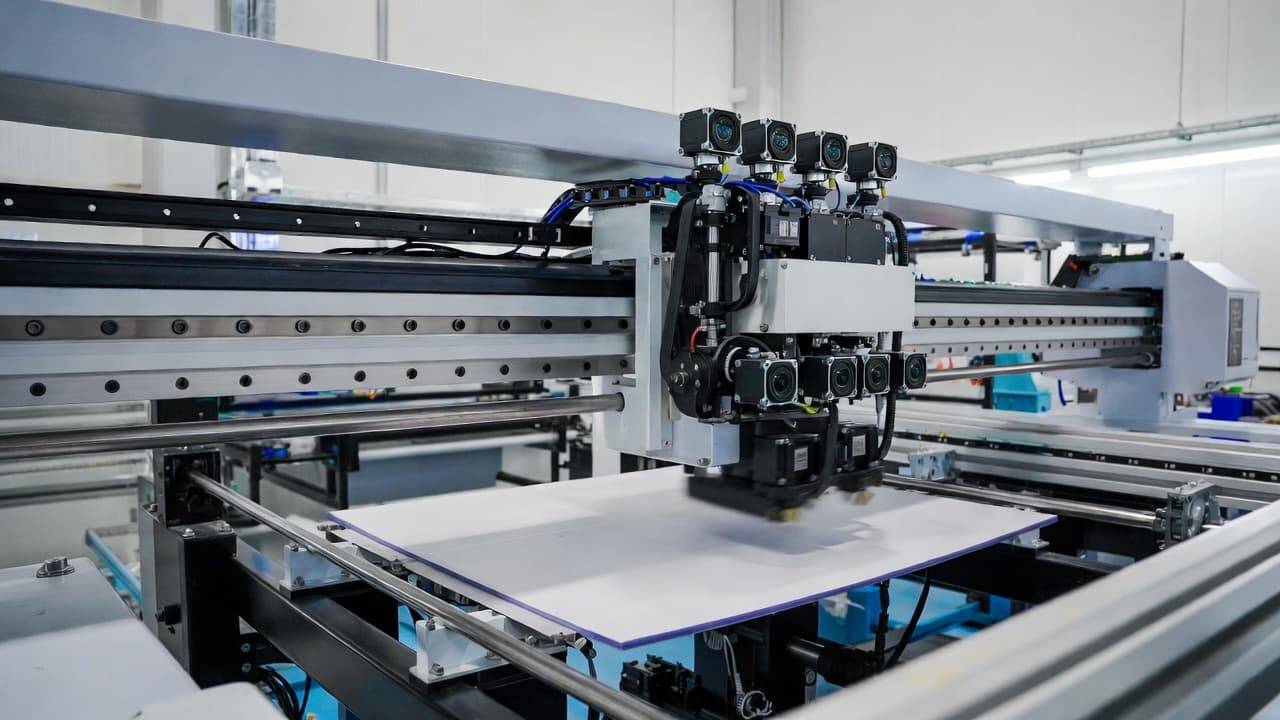

Core Components of a Vision System

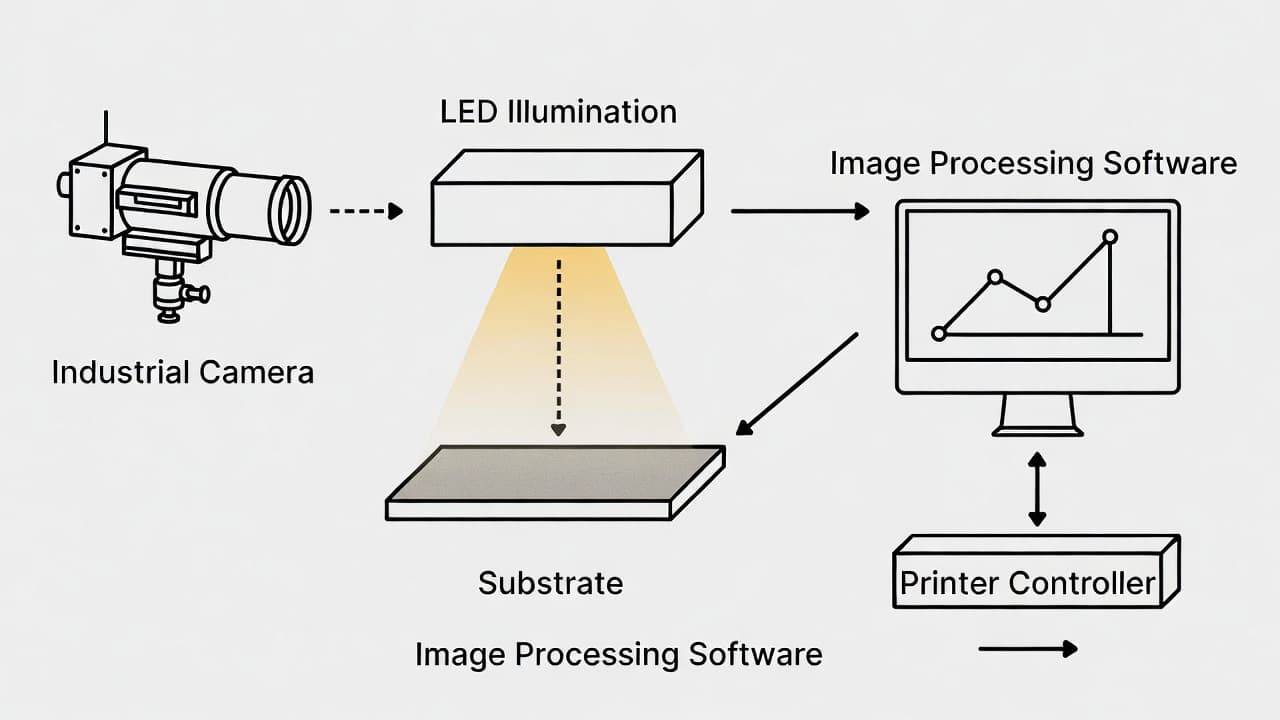

A complete vision system in a UV printer typically includes:

Industrial Cameras
High-resolution cameras capture real-time images of the substrate, registration marks, edges, or previously printed layers.

Illumination Module
Specialized LED lighting provides consistent brightness and contrast so that the camera can clearly identify reference points regardless of substrate color or texture.

Image Processing Software
Advanced algorithms analyze the captured images, identify patterns or markers, and calculate exact positional data.

Controller Interface
The system communicates directly with the printer’s motion control system, sending instructions for precise alignment.

Through this process, the vision system provides accurate spatial information that guides the mechanical movement of the printer.

Understanding Servo Motors in UV Printers

Servo motors are precision-controlled motors used to move key components of the printer, such as the print head carriage, the media feed system, and the printing platform. What makes servo motors special is their ability to control position, speed, and acceleration with extreme accuracy through continuous feedback.

Unlike standard motors that rotate at a fixed speed, servo motors constantly adjust their movement based on signals from sensors and controllers. This allows them to perform micro-movements that are essential for high-resolution printing.

Types of Servo Motors Used in UV Printers

AC Servo Motors
These are commonly used in industrial UV printers because they provide high torque, fast response times, and long operational life. They are ideal for high-speed printing environments.

DC Servo Motors
Often found in smaller or entry-level machines, DC servo motors offer reliable precision and simpler control systems for lighter workloads.

Servo motors ensure that every movement of the print head and media platform happens exactly as instructed, down to fractions of a millimeter.

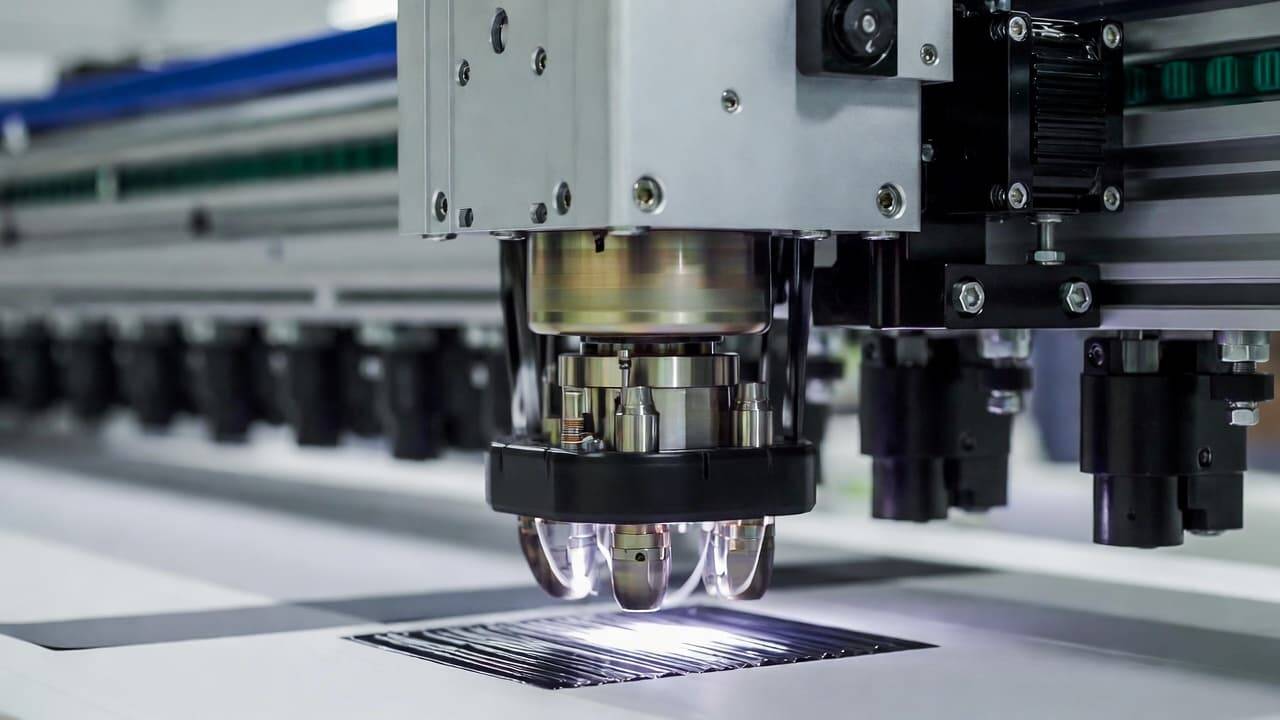

How Vision Systems and Servo Motors Work Together

Individually, vision systems and servo motors are powerful. When integrated, they create a closed-loop precision system that dramatically enhances printing accuracy.

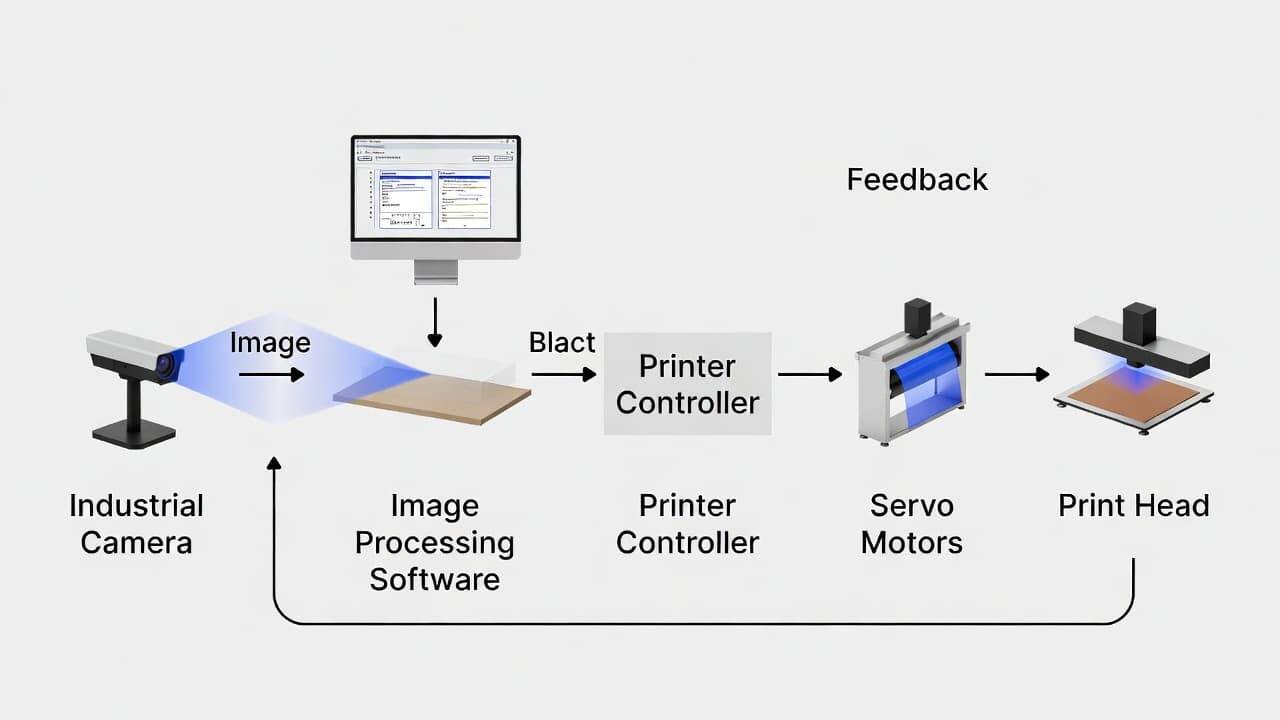

Here is how the interaction works step by step:

1. The camera captures an image of the substrate or registration marks.

2. The software analyzes the image and determines the exact position of the print area.

3. Positional data is sent to the motion controller.

4. Servo motors receive instructions and move the print head or platform to the precise location.

5. During printing, the system continues to monitor alignment and makes micro-adjustments in real time.

This constant feedback loop ensures that printing happens exactly where it should, even if the material is slightly misaligned, curved, or irregular.

Real-Time Feedback and Automatic Correction

One of the most powerful advantages of combining vision systems with servo motors is real-time correction.

If the system detects that the material has shifted slightly, or that the previous print layer is not perfectly aligned, the servo motors immediately adjust the position before the next ink drop is released. This happens so quickly that the operator may not even notice.

This capability is especially important for:

• Multi-layer printing (white ink, color ink, varnish)

• Printing on pre-cut or irregularly shaped items

• High-volume production where manual alignment would be too slow

Key Benefits of This Integration

Exceptional Print Accuracy

The combination enables pinpoint placement of ink, ensuring sharp text, detailed graphics, and perfect alignment for multi-pass printing.

Reduced Material Waste

Misprints caused by alignment errors are dramatically reduced, saving substrates and ink.

Faster Production Speed

Because alignment is automatic, operators do not need to stop and manually reposition materials, allowing continuous workflow.

Consistent Quality Across Batches

Each item is visually checked and precisely printed, ensuring uniform results across large production runs.

Ability to Print on Challenging Surfaces

Curved objects, transparent materials, reflective surfaces, and pre-cut shapes can be printed with confidence.

Automatic Calibration for Different Substrates

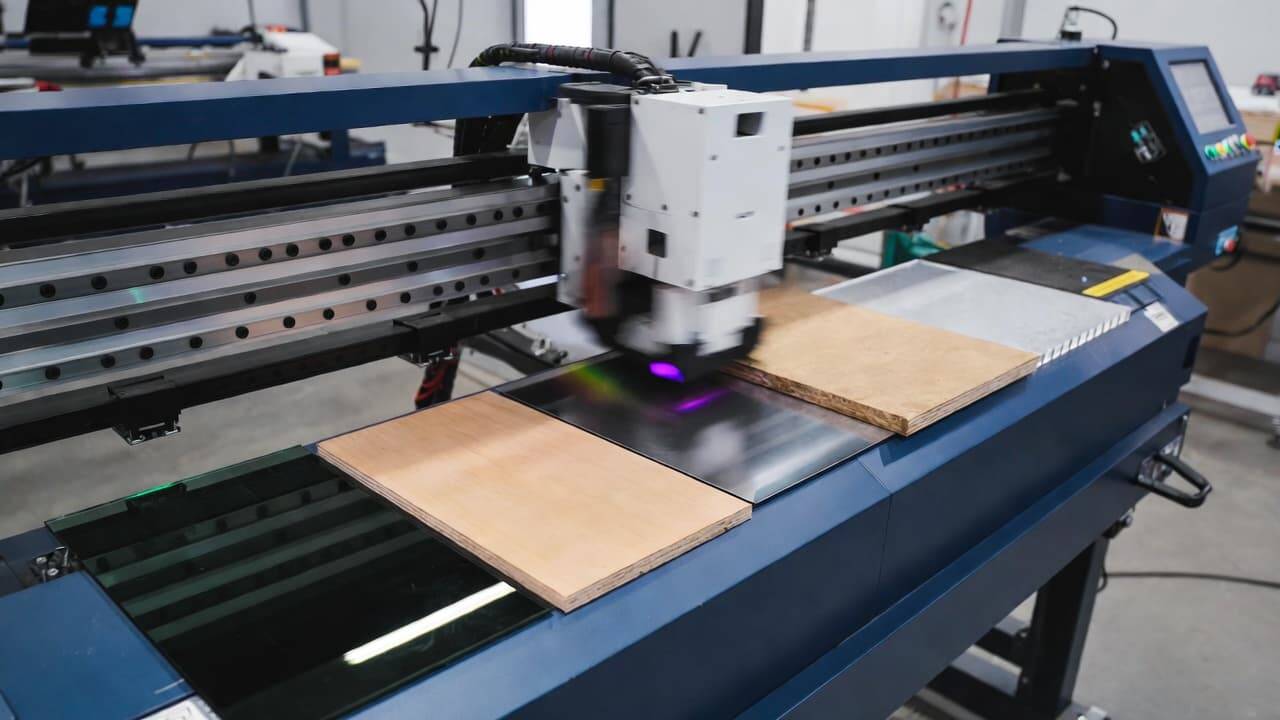

Modern UV printers often handle a wide range of materials such as acrylic, glass, metal, wood, plastic, leather, and cardboard. Each material reflects light differently and may have unique surface characteristics.

Vision systems automatically adjust calibration settings based on how the substrate appears under the camera. Servo motors then adjust movement parameters accordingly. This eliminates time-consuming manual setup when switching between materials.

Error Detection and Quality Control

Vision systems do more than positioning. They also act as quality inspectors.

They can detect:

• Missing print areas

• Misalignment between layers

• Surface defects

• Incorrect placement of objects on the platform

If a problem is detected, the printer can pause or correct the issue before continuing, preventing large batches of defective products.

High-Speed Printing Without Losing Precision

Traditionally, higher printing speeds meant sacrificing accuracy. With servo motors guided by vision feedback, UV printers can move rapidly while maintaining perfect control.

Servo motors accelerate and decelerate smoothly, avoiding vibrations that could blur the print. At the same time, the vision system ensures alignment remains exact even at high speeds.

User-Friendly Operation and Reduced Skill Requirements

Because much of the positioning and calibration is automated, operators do not need extensive technical training. The system handles complex alignment tasks in the background.

User interfaces typically display visual feedback from the camera, making setup intuitive and reducing human error.

Applications Across Industries

Packaging and Product Decoration

Precise placement is essential for branding and regulatory information. Vision-guided UV printing ensures every package is printed perfectly.

Label Printing

Small labels require exact positioning. Vision systems make high-volume label production efficient and accurate.

Promotional Products

Items such as phone cases, pens, USB drives, and gifts often have irregular shapes. Vision systems make direct printing on these objects possible.

Industrial Marking

Serial numbers, barcodes, and QR codes must be accurately positioned for scanning. Servo precision ensures readability.

Textile and Leather Printing

Flexible materials can shift during printing. Vision feedback compensates for movement and keeps prints aligned.

The Role in Multi-Layer UV Printing

UV printing often involves multiple ink layers: white base, color layer, and varnish. Each layer must align perfectly with the previous one.

Vision systems detect the position of the first layer, and servo motors ensure subsequent layers are printed in exact registration, preventing ghosting or blurring.

Future Trends in Vision-Guided UV Printing

As technology evolves, vision systems are becoming more intelligent through AI-based image recognition. Future printers will be able to identify object shapes automatically and adjust print paths without predefined templates.

Servo systems are also becoming faster and more energy-efficient, enabling even higher throughput with lower operational costs.

Why This Technology Matters for Printing Businesses

Businesses investing in UV printers with integrated vision and servo technology benefit from:

• Lower rejection rates

• Faster turnaround times

• Broader material compatibility

• Higher customer satisfaction due to consistent quality

• Reduced reliance on highly skilled operators

These advantages translate directly into improved profitability and production capability.

Conclusion

The integration of vision systems and servo motors represents a major advancement in UV printing technology. Vision systems provide the “eyes” that guide the printer, while servo motors deliver the “hands” that execute movements with precision. Together, they create an intelligent, responsive printing environment capable of producing high-quality results at impressive speeds.explore our high-quality Visual Positioning UV printers here

For companies seeking reliable, accurate, and efficient UV printing solutions, this combination is no longer a luxury but a necessity. As UV printing continues to advance, vision-guided servo control will remain at the core of next-generation printing performance.
