Product Introduction And Specification


High productive UV hybrid printer suits for rigid & flexible media & custom promotional items printing. This hybrid large-format UV LED inkjet printer combines award-winning print quality with extreme productivity, cutting-edge automation and low ink consumption.


What must need to be mentioned is that, our new negeration UV hybrid printer features Visual Positioning Technology, it brings new vitality to UV Printing. No positioning fixture is required for all small items printing now, this system delivers outstanding image quality and productivity even you put everything you need to ptint at random on the platform. It's very easy to automatic accurately position and then scan printing, greatly streamline your print process and explore print possibilities for a variety of promotional items.


Produce smooth, detailed prints up to 2meters wide at up to 170㎡/h. Thanks to the rapid UV LED curing of MT’s special formulated UV inks and the smart automation features of custom RIP software, this hybrid UV printer workhorses exceed expectations every time.


With MT-UV 2000HR LED UV roll and flatbed printer, you will find it can easily handle extreme workloads, multiple-shift operation and 24/7 printing. Suited for a variety of rigid &flexible substrates and various promotional items, these printers offer you countless options to create eye-catching large-format as well small-format prints.


MT-UV 2000HR allows up to 16 Ricoh Gen5 / Gen6 print head, with the color configuration of CMYK, White and Varnish. With a versatile print width of 2meters, the MT-UV 2000HR utilize fully adjustable water-cooled UV LED lamps which will allow for printing on heat sensitive materials faster than competitive technologies, such as thin slides, self-adhesive sheet, stretch PVC materials, and more.

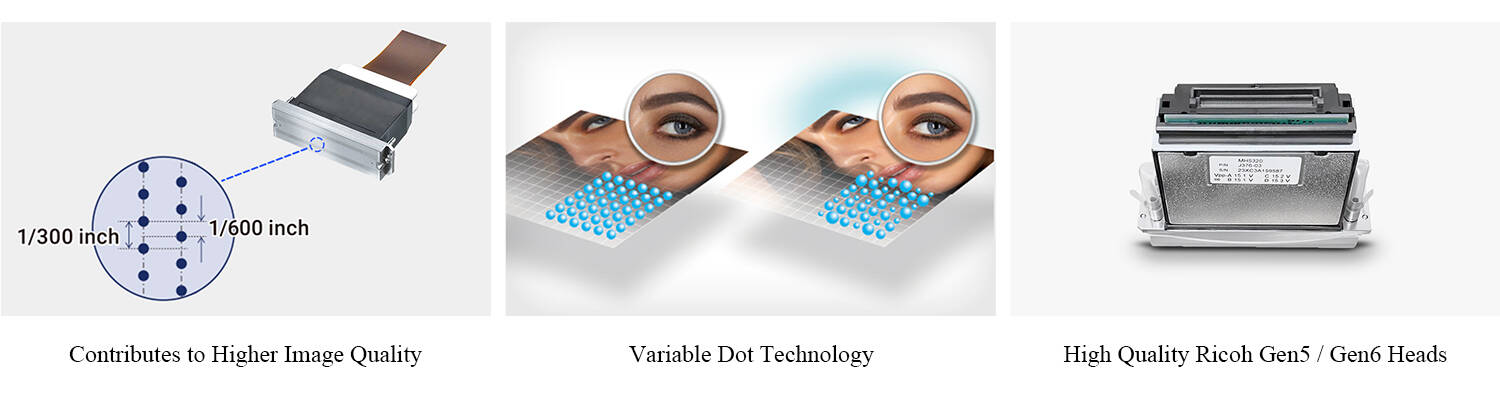

UV 板卷_02

  • UV 板卷_03
    Hybrid UV printing solution: prints flawlessly on both rigid & flexible media, as well promotional items
    Heavy-duty: built for 24/7 printing
    lmpressive productivity and multiple automation options
    Award-winning image quality in CMYK W V
    UV LED technology bringing economic and ecological benefits
    Thin Ink Layer technology for lowest ink consumption
    Powered by smart custom RIP software

UV 板卷_04

With the versatile MT-UV 2000HR Digital UV Hybrid Printing Systems, you are only limited by your imagination.
You can print on large format graphics on PVC, Vinyl, Acrylic, Canvas, Paper, Foam, Dibond, Forex, Coroplast, Wood, Metal, Plastic, Glass, Leather.Stone, Brick, Porcelain, Rubber, Cardboard, carton and PVC, as well as (self-adhesive) vinyl, blue-back paper, canvas, coated paper and PET foils. This makes them suited for banners, posters, signage (e.g. traffic or industrial information), exhibit graphics, POP, mockups, backlit, front-lit, self-adhesives (labels), etc. They canalso be used for niche applications such as wood, art reproductions, glass, interior decoration and more.

With the poweful Visual Positioning Technology, you can also use it to print on various small promotional products,such as custom mobile phone cases, USB drive flash, badges, bottle openers, jigsaw puzzles pieces, small mirrors, small bottle caps, earphone cases, and keychains etc



1. Industry-leading print quality for extremely vivid prints
MT-UV 2000HR uses Ricoh Gen5 / Gen6 Printheads, which is engineered for high-quality printing, yet has an outstanding output of 170 ㎡/h with full bleed capacity. Whatever you are creating, the MT-UV 2000HR printers, powered by MT’s signature UV LED-curable inks, deliver a wide color gamut and high color vibrancy. MT’s color management module allows for accurate mapping of spot colors and neutral gray printing, while the robustness of the printers and their precise media transport, combined with specific jetting algorithms and masking technology, results in excellent solid color reproduction on a wide variety of media. The 6-color models include CMYK, White and Varnish.


Your customers will enjoy a print quality resembling offset printing, with fine details and smoothness throughout. The 3.5PL droplets produce stunning images at 720 x2400 dpi with a fine rendering of shadow and highlight details, and razor-sharp texts in as small as 4-point type both in positive and negative text. The printers also excel in smooth ramp-ups over the tonal range, with outstanding skin tone rendering.

10

2. Features Visual Positioning Technology
Equipped with a visual positioning system, which can accurately identify the location and direction of the printed object, and perform precise printing, with clear and viviant results. This UV hybrid printer machine can help manufacturers improve production efficiency for small items printing.

3.Belt conveying control system

The MT-UV 2000HR hybrid UV printer with belt conveying control system, it can make a trace less printing effect when printing thin material like pvc film. It’s capable of printing on wallpaper, advertisement cloth and other flexible and hard materials.


4. Variable Dot Printing – uses smaller drops to produce smoother gradations, while larger drops produce uniform solids. Variable dot, true greyscale imaging 3.5PL, 5.5PL, and 11PL-at a true native 1200 DPI.


5.Waveform Control – utilizes finely tuned frequencies for each ink’s specific gravity and viscosity to precisely shape and place individual drops.


6. MT White Ink Stir Technology - continuously agitates the white inks to prevent settling.White Ink is special and will subside so that it will affect printing color or will be easy to block print head. After installing this, white Ink can stir automatically. If there is sediment at ink box, stir can work auto to prevent ink sediment.


7. Feeding and taking up system

Feeding and taking up systems all adopt tension control, it can adjust the tension strength while printing depends on the material thickness, and provide  a stable tension when printing continuous media, ensure the stability and printing quality when the media is in motion.


8.UV-curing Lamps / LED

Instant UV ink curing for fast production.Cures on both the left and right pass.


9.Emergency Stop Switches.

The user can stop the printer operation from either side of the machine.


10.On Board Control Module

Allows user to adjust printer settings for each ripped file, and make on-the-fly adjustments of ink and media settings, white ink workflow and physical printer settings. Those settings can be saved for repeat runs, eliminating the need to rerip job.
UV 板卷_05-2 细节图


UV 板卷_06

Specially formulated to print on rigid or flexible media, MT’s UV LED inks broaden the scope of possible applications. This is what you can expect:



  • Vibrant colors, impressive results

  • The lowest ink consumption out there

  • Excellent adhesion and durability

  • Advanced white printing and ink management

  • Primer option

  • Compliant to industry norms


UV 板卷_07

Model TypeUV Hybrid Printer MT-UV 2000HR
Printhead

3~16pcs Ricoh Gen5 / Gen6 Printheads

Max. Printing Width2000mm
Max. Printing Height 80mm
Print Speed
10㎡/h ~170㎡/h

Applications
Suits for both rigid and flexible materials printing, such as Wood, Glass, Acrylic, MDF, Plastic, Correx, Foam board, Wallpaper,soft film,Wall Art,Sign Advertising,Paper,Poster,Promotion Products,Leather,PU,PMMA,PVC,PP,PE,PTFE,Ceiling,Home & Office Decoration,Oil Painting,Fresco,Wedding Photography,Mark And Signs,Exhibition,Flex, Banner,Knife Coated Substrate,Double Side Printing Banner,Advertising Cloth,Adhesive Vinyl,One Way Vision,Mesh,Reflective Banner,Reflective Vinyl,Etc......
Ink
Soft UV Ink / Rigid UV Ink
Colors
CMYK + W+Varnish
RIP SoftwareCustom RIP Software
Operation SystemWindows 7,Windows 8,Windows 10
Picture TypeJPG PSD TIFF

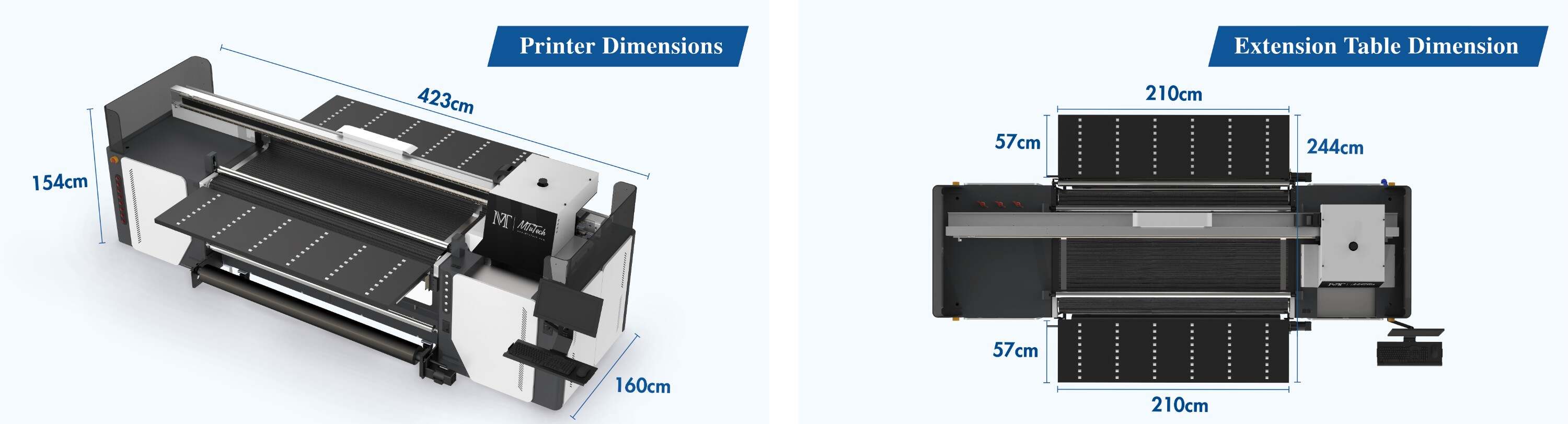

Printer DimensionW3160*D850*H1480mm
Packaging DimensionW3330*D760*H1020mm
Net Weight1100kg
Gross Weight1400kg
Online Inquiry

Hybrid UV Printer MT-UV 2000HR
