Description

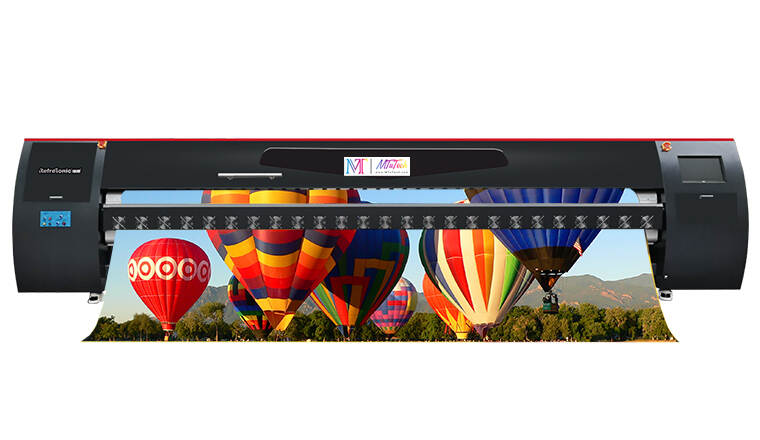

MT Industry Konica Solvent Printer adopts machine controlling system which was tested more than five years. We use most of spare parts tested over 10 years. Thus printing quality is stable and reliable, so that MT Konica Solvent Printers can bear long time continues printing work. Especially, the Patent technology to ensure 100% achieves 100m media printing within one time. The most important is the whole printer takes eco solvent printer's precision mechanical and technology as its production standard to produce Konica solvent printer.

Features

13 reasons to choosing MT New Generation Solvent Printer!!!

1.MT Konica Solvent Printer high spped printing

MT Konica Solvent Printer high spped printing with 8 Konica KMHS1000 / KM512i Printheads, amazing printing speed ups to 600sqm/h.

2. MT Konica Solvent Printer equipped with Four in one temperature controller with Three-stage adjustable temperature function.

Equip with the Pre-heater，middle heater and back heater, also as well as the printhead plate heater system for solvent printing process, it can be adjust the temperature of the media and printhead. The switches of heating system are in the same control panel, easy to operate and less fails.

3.MT Konica Solvent Printer adopts separate infrared heating system,equips with the Infrared fan heater to speed up printouts drying .

4. MT Konica Solvent Printer adopts separate machine's main power and heater's main power.

Separate machine power and heater power to avoid huge electric current or electromagnetic wave disturb the printing quality.

5. As the top quality Konica Solvent Printer, it adopts linear guide rails with double-slider and sound off function, more durable and reliable for high precision printing.

6. MT Konica Solvent Printer equipped with secondary ink tank and ink circuit heating system suitable for low temperature working environment in winter.

7. MT Konica Solvent Printer equipped with separate colors cleanout system.

Individual ink purging cleanout system is good for cleaning heads and saving ink.

8. MT Konica Solvent Printer equipped with automatic cleaning system.

Different from ink purging system, this is cleaning by cleaning solution with reserved suction channel for automatic printhead cleaning which is safe and convenient maintain function. Therefore, client can print on any time without clog trouble.

9.The height of printhead carriage plate can be adjust freely and easy to operate.

Controlling the height of printhead carriage plate by a rotary knob, which can control the height between printheads and printing platform easily.

10. MT Konica Solvent Printer equipped with unique printhead protection stack with intelligent printhead moisturizing device.

This function can protect the printheads easily by pushing the carriage rightward after a busy day. After the solvent printing machine is shut down, the moisturizing device leaves all of printhead nozzles into cleaning solution to prevent nozzle clog caused by dry ink.

11. MT Konica Solvent Printer adopts precision mechanical parts for higher accuracy of feeding and collecting system.

12.  MT Konica Solvent Printer was installed LED lamp inside of printing platform.

Printing platform collocate with LED lamp, easy to observe and test the printing quality.

13. MT Konica Solvent Printer equipped with 400W Panasonic servomotor AC drive motor.

400W Panasonic servo motor service for X direction which provide strong safeguard for the printhead carriage on high speed running, also working with 30K frequency of Konica printhead in harmony that can be reach the printing speed of 600 m²/h.

Product Specification
