Product Introduction And Specification
| Mode Type | Digital Textile Belt Drive Printer MT-Belt I3200Plus | |
|---|---|---|

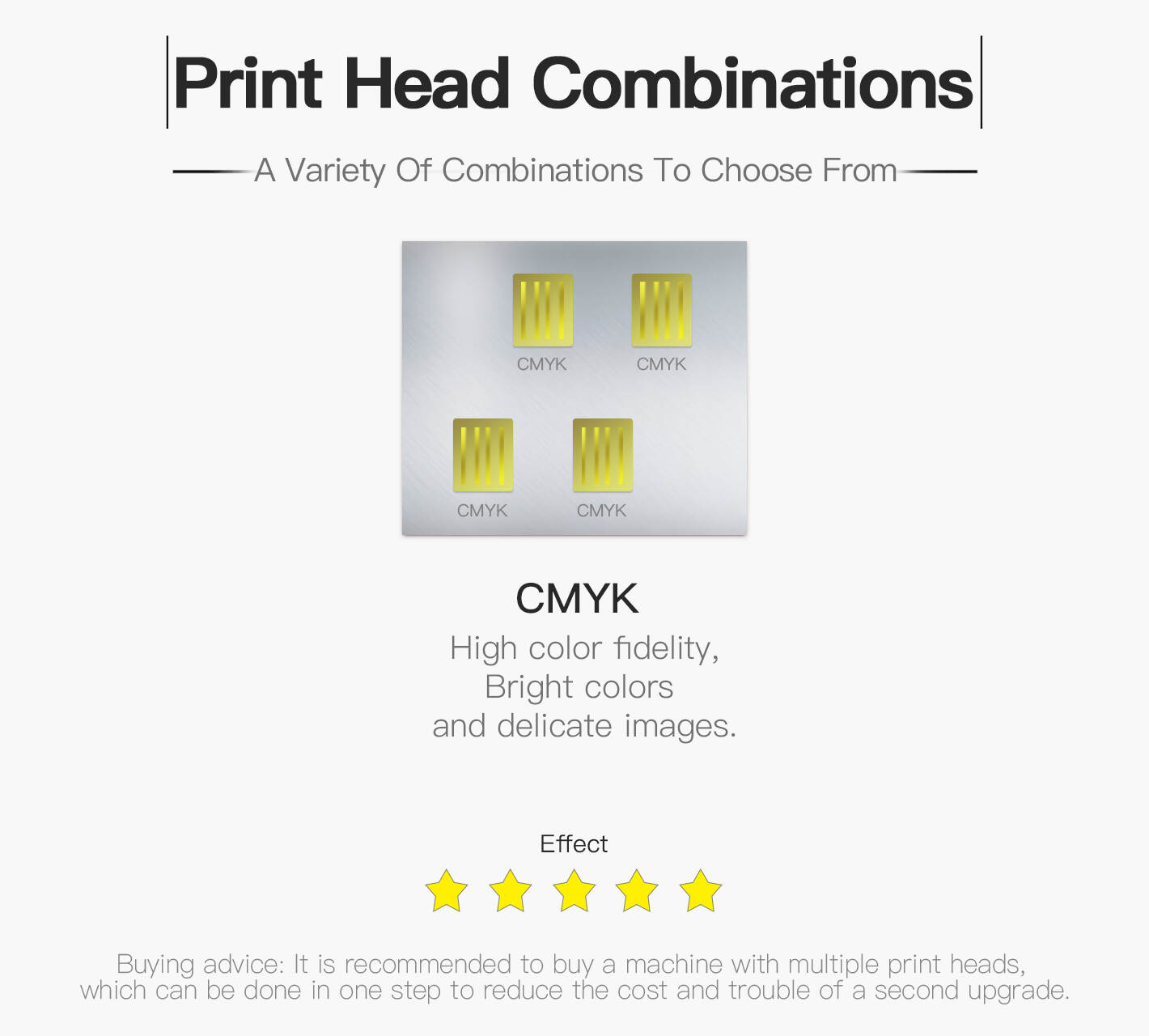

| Printhead | Four Epson I3200 Printheads (Two / Three Epson I3200 Printheads Optional) | |
| Number of Nozzles | 3200 Nozzles X 4 Printheads | |
| Color | 4 Colors: Cyan, Magenta, Yellow, Black | |
| Resolution | 720*2400dpi (Max.) | |
| Height Of Printhead | 2-5mm | |
| Size of Ink Droplet | 3.8-6-12（9.4）pl | |
| Max. Printing Width | 1800mm | |
| Max. Media Width | 1900mm (Max.) | |
| Real Time Tracking | None | |
| Printing Speed | 2pass | 97.8 Sq.m Per Hour |
| 3pass | 72.8 Sq.m Per Hour | |
| 4pass | 59.1 Sq.m Per Hour | |
| 6pass | 45.6 Sq.m Per Hour | |
| Media Feeder | Yes | |
| Media Take-up | Yes | |
| Material | Max. Weight | 70kg |
| Application Type | Cotton Fabric,Flax Fabric,Silk Fabric,Polyester Fabric,Flag Fabric,Satin Fabric,Warp Knitting Fabric,Nonwoven Fabric,Chiffon Fabric,Spandex Fabric,elastic fabric,Polycotton Fabric,Canvas Cloth,Velvet Fabric,Sofa Fabric,Curtain Fabric,Wool Fabric,Cashmere Fabric,Rayon Fabric,Modal Fabric,Towel Fabric,Bath Towel Fabric,Screens,Shower Curtain Fabric,Tent Fabric,Pillow Fabric,Cushion Fabric,Upholstery,Advertising Banners,Flag Banner,Textile Wallpaper,Wall Cloth,Art Paintings,Table Cloth,Apparel Fabrics,Home Textile Printing,Bed Sheet Printing,Outdoor Leisure Products,Hunting Supplies Printing,Beach Products Printing,Clothing Printing,Cloth Bag Printing,Sari Printing,T-Shirt Printing,Garment Printing And Footwear Printing...Etc. | |
| Ink | Type | Sublimation Ink, Reactive Ink, Pigment Ink, Dispersive Ink, Dye Ink |
| Ink Tank Account | 4*2.5 Liter Continuous Bulk Ink Supply System | |
| Auto Cleanning System | Yes | |
| Material Drying System | Fan Drying System, 4 Intelligent Embedded Segment Heating System | |
| Interface | HI-USB3.0 | |
| Power | Power Voltage | AC220-240V 50-60HZ |
| Control Software | Print Manager | |
| RIP Software | Maintop/Photoprint/Wasatch/Print Factory | |
| Heater | Far Infrared Ceramic Tube Radiation Electro Thermal Heater (Optional) | |
| Operation System | Windows 7,Windows 8,Windows 10 | |
| Printing Environment | Temperature: 20-25 centi degree, Humidity: 40-60% | |
| Picture Type | AI/EPS/PDF/PSD/FS/PD/JOB/CUT/JPG/JPEG/FPX/PCD/PCT/PICT/WMF/PRT/PLT/2PS/FJB/PRN/TGA/TIF/TIFF/BMP/PCX | |
| Printer Dimension | W3160*D1550 * H1260mm | |
| Packing Dimension | W3620*D2020 * H1520mm | |
| Gross Weight | 1100kg | |
| Net Weight | 870kg | |
