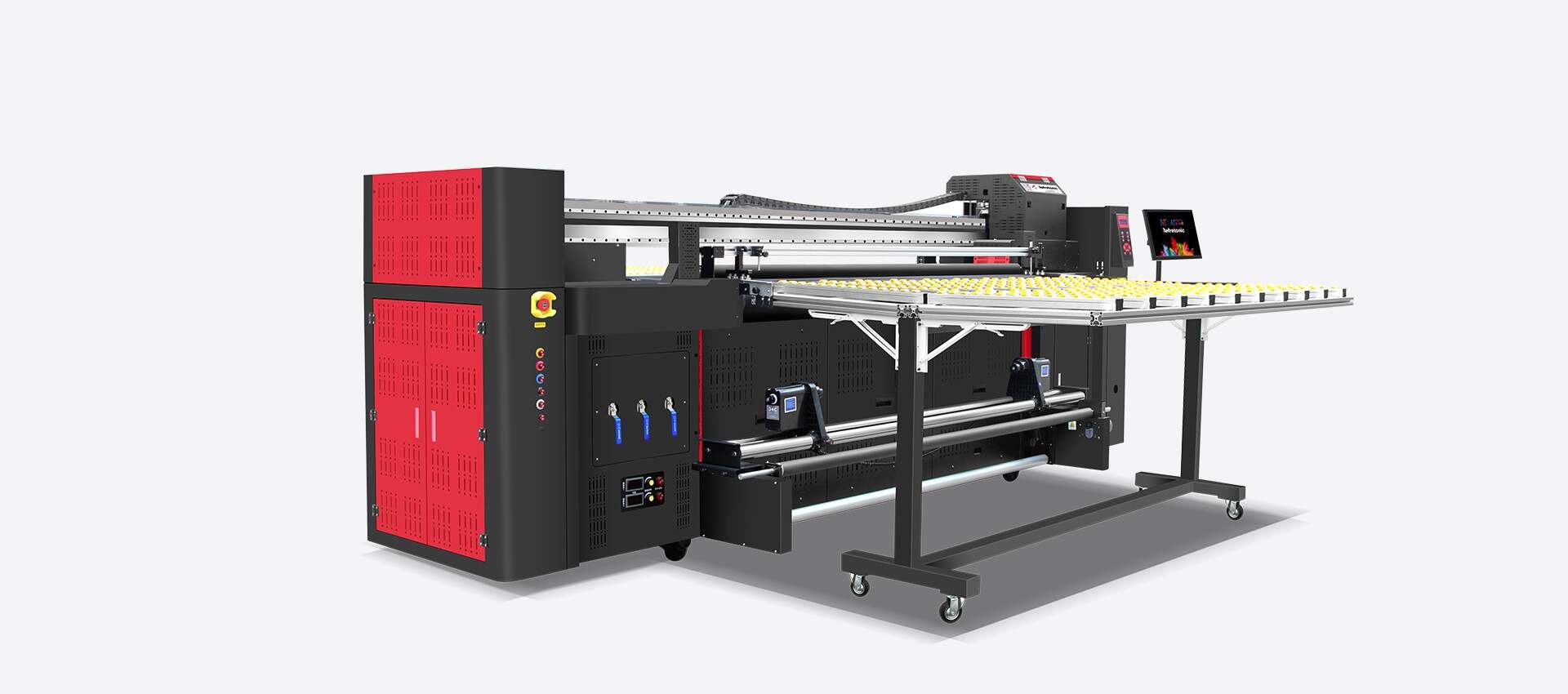

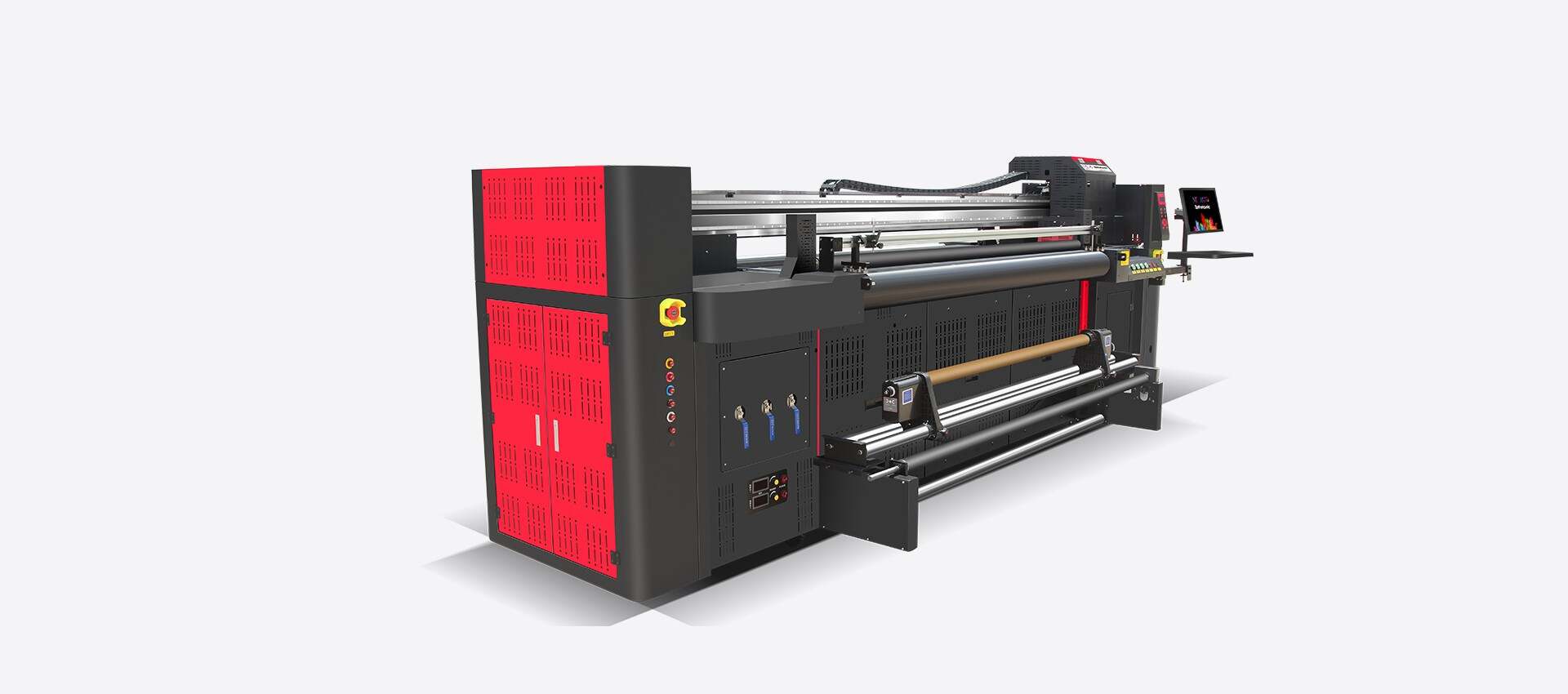

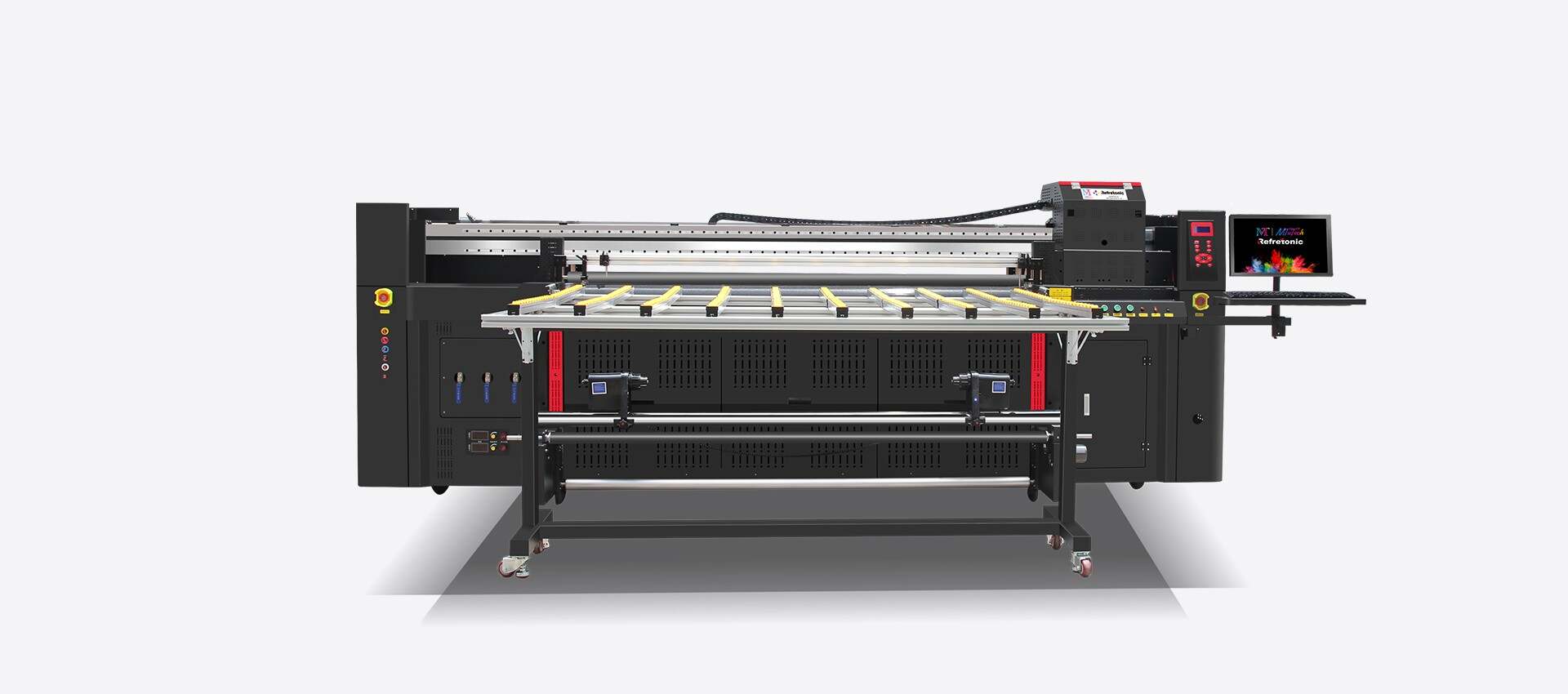

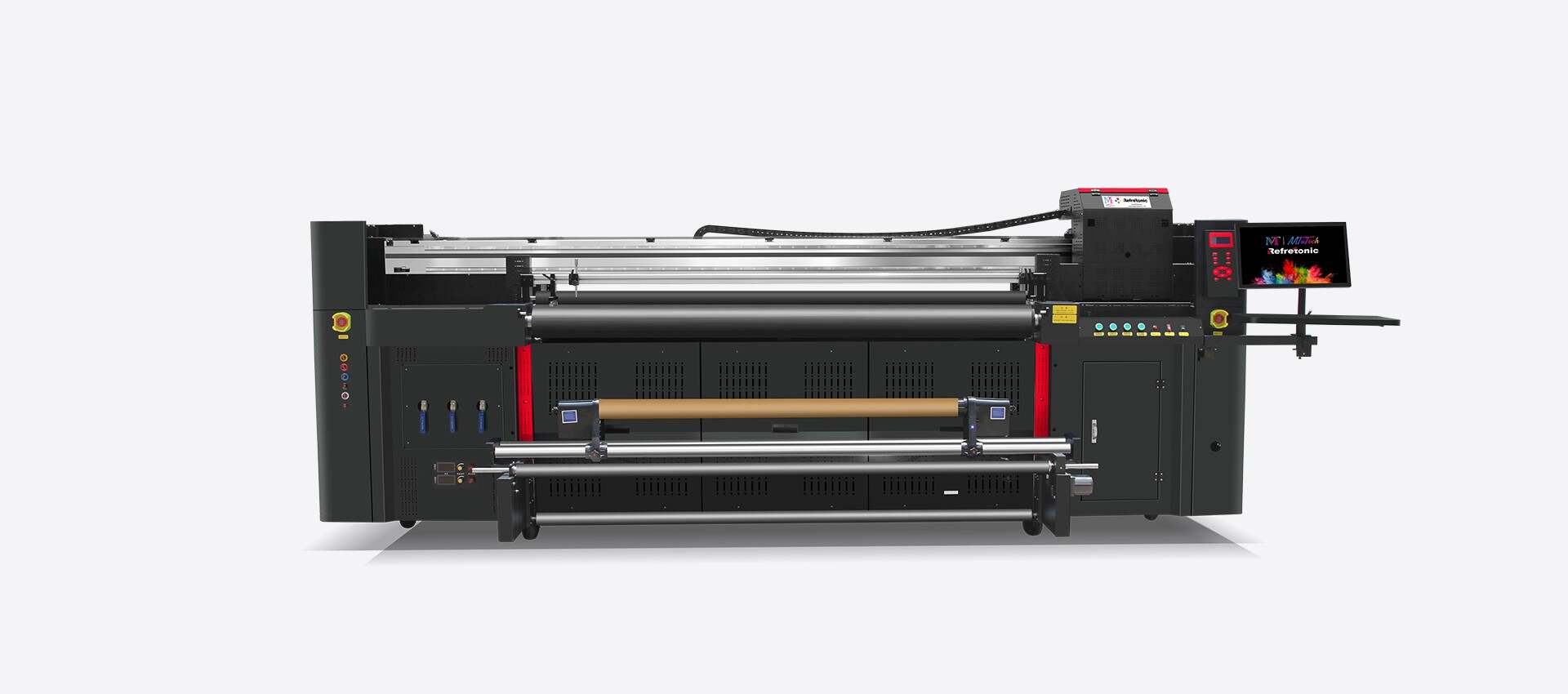

Hybrid UV Printer
MT-UV2000HR
Hot Product
Play Video Inquiry Now

  • From Namibia

    From Namibia

  • From Canada

    From Canada

  • From Poland

    From Poland

  • From Israel

    From Israel

Product Introduction And Specification

信保banner06-2000卷产品功能一台电脑打印喷头Ricoh-01打印喷头Ricoh-02电压 芯片2000个性化产品应用打印步骤MT重新定义服务产品优势-01产品优势-02产品优势-03联系方式8-蓝红机器尺寸参数

Mode TypeHybrid UV Printer MT-UV2000 (Roll To Roll & Flatbed)
PrintheadFour Ricoh Gen5 Drop-on-demand Micro-Piezo Printheads (Two Ricoh Gen5 Printheads Is Optional)
Number of Nozzles1280 Nozzles X 4 Ricoh Gen5 Printheads
Color4 Colors, Double 4 Colors, 5 Colors, 5 Colors + V
Resolution1280dpi (Max.)
Height Of PrintheadUp To 80mm
Size Of Ink Droplet2.5-21pl
Max. Printing Width2000mm
Max. Media Width2100mm (Max.)
Real Time TrackingNone
Printing Speed4pass60.0sq.m per hour
6pass52.0sq.m per hour
8pass44.0sq.m per hour
10pass32.0sq.m per hour
12pass20.0sq.m per hour
Media FeederYes
Media Take-upYes
MaterialMax. Weight100kg
Application TypeWallpaper,soft film,Wall Art,Sign Advertising,Paper,Poster,Promotion Products,Leather,PU,PMMA,PVC,PP,PE,PTFE,Ceiling,Home & Office Decoration,Oil Painting,Fresco,Wedding Photography,Mark And Signs,Exhibition,Flex, Banner,Knife Coated Substrate,Double Side Printing Banner,Advertising Cloth,Adhesive Vinyl,One Way Vision,Mesh,Reflective Banner,Reflective Vinyl,Etc......
InkTypeImport Soft UV Curing Ink / Rigid UV Curing Ink (3 Years Outdoor, 10 Years Indoor, Both Without VOC)
Ink Tank Reservoir Capacity5 * 2.5 Liter Bulk Bontinuous Ink Supply System
Negative Pressure System Vacuum Ink Supply Fluency Ink Flow Without Missing Nozzle
Ink Curing SystemTwo LED Curing Lamps With Water Cooling System
Media AdsorptionMulti-section Intelligent Suction System With Adjustable Strength
InterfaceHigh Speed USB Transmission USB2.0/3.0
PowerPower VoltageAC220-240V 50-60HZ, AC110-120V 50-60HZ (optional)
Control SoftwarePrint Console
RIP SoftwareMaintop (Photoprint, Wasstch Optional)
Operation SystemMS Windows XP, Windows 7
Printing EnvironmentTemperature 15-35 Degrees,  Humidity 30-65 Rh
Picture TypeJPG PSD TIFF
Printer DimensionW4200 * D1500 * H1350mm
Packing DimensionW4300 * D1700 * H1740mm
Net Weight750kg
Gross Weight900kg


2000配件清单细节展示更多细节UV板卷喷头组合喷头安装须知品牌故事公司照片客户照片3P_]E5HG]$B)$X}EW}KL)`X奖杯证书服务全球质检购机流程-转盘EDB2BB39DC5074992C2899554F78EBD3送货尺寸说明

Sharing To Instagram And Facebook
Canvas Printing 24
Wood Printing 55
Stretch Ceiling Printing 66
Leather Printing 14
Glass Printing 5
Ceramic Tile Printing 28
Online Inquiry

Hybrid UV Printer MT-UV2000
