Product Introduction And Specification

Konica UV Printhead

KM1024MHB

KM1024i

use head machine:
Agfa Anapurna M1600,Anapurna M2,Anapurna M2050,Anapurna M2540 FB,Dilli Neo Titan UV-1604DW,IIJ colourprint 72,Monoprint 72,colourprint282,Monoprint282,colourprint 352,Monoprint352,colourprint 142HQ,SUN Neo UV-LED Flatbed,TECOM T

Major improvement in productivity by use of 1024 multi-nozzles and realization of wide print width of 72mm

The unit is equipped with twice the number of nozzles mounted on the KM512 printhead, enabling the high density required to realize the 72mm print width.
This increased width further enhances applicability to printing systems (e.g. Single-pass inkjet printers) that demand high productivity.
Printhead power consumption is reduced by 50% through the use of a new, high efficiency piezo actuator.

Konica Minolta piezo on-demand inkjet heads are already driven using lower voltages than other inkjet heads and the new actuator used in the KM1024 reduces power consumption even further. This makes the printhead ideally suited to “green” design and shows Konica Minolta’s ongoing consideration for the environment.
Increased grey-scale levels produce richer tones and more subtle gradients making the printhead even more attractive to existing and new print applications.

Equipped with a new control IC, the KM1024 printhead can print up to a maximum of 8 drop sizes. This allows even greater control of the printed image resulting in smoother colour gradients and more precisely matched tones.
The ultra-slim, space saving printhead shape improves print quality and allows more compact machine design.

The KM1024 printheads can be mounted very closely together minimising out of alignment errors in the transport or traverse system. This improves print registration resulting in consistently higher quality print. As multiple printheads can be mounted in a smaller space it is often possible to greatly reduce the length of the print path resulting in an overall reduction in machine size.

KM1024LNB
KM1024MNB
KM1024iMHE
KM1024iLHE

Major improvement in productivity by use of 1024 multi-nozzles and realization of wide print width of 72mm

The unit is equipped with twice the number of nozzles mounted on the KM512 printhead, enabling the high density required to realize the 72mm print width.
This increased width further enhances applicability to printing systems (e.g. Single-pass inkjet printers) that demand high productivity.
Printhead power consumption is reduced by 50% through the use of a new, high efficiency piezo actuator.

Konica Minolta piezo on-demand inkjet heads are already driven using lower voltages than other inkjet heads and the new actuator used in the KM1024 reduces power consumption even further. This makes the printhead ideally suited to “green” design and shows Konica Minolta’s ongoing consideration for the environment.
Increased grey-scale levels produce richer tones and more subtle gradients making the printhead even more attractive to existing and new print applications.

Equipped with a new control IC, the KM1024 printhead can print up to a maximum of 8 drop sizes. This allows even greater control of the printed image resulting in smoother colour gradients and more precisely matched tones.
The ultra-slim, space saving printhead shape improves print quality and allows more compact machine design.

The KM1024 printheads can be mounted very closely together minimising out of alignment errors in the transport or traverse system. This improves print registration resulting in consistently higher quality print. As multiple printheads can be mounted in a smaller space it is often possible to greatly reduce the length of the print path resulting in an overall reduction in machine size.


Ricoh Gen5 UV Printhead


Toshiba CA3 Printhead

CA3W
CA3LC:Oce Arizona 200GT,250GT,Fujifilm Acuity HD2504
CA3LB
use head machine:
FLora F1-180UV /F1-250UV

This Toshiba CA3L print head is suitable for Fuji Aquity 2504 and Oce Arizona 250GT printers. Unlike conventional binary printheads, this grayscale printhead technology of jetting multiple drops within one dot allows for an image to have 8 level grayscale, since each dot is created through a minimum of 6 pl to a maximum of 42 pl of ink. This enables the image to express near photo quality. Revolutionary single passspeed quality priting is achievable with its unique precise piezo process and driving technologies, offering accurate dot placement and jetting reliability. Compatibility with both UV curable and oil based pigment ink allows printing on various types of substrate, both porous and non-porous. The CA3 is packaged printhead with chassis which provides built-in water channel and complete sealing designed for easy temperature control. This head is delivered in a sealed Toshiba box with a head ID? waveform and voltage. This printhead carries a product warranty.

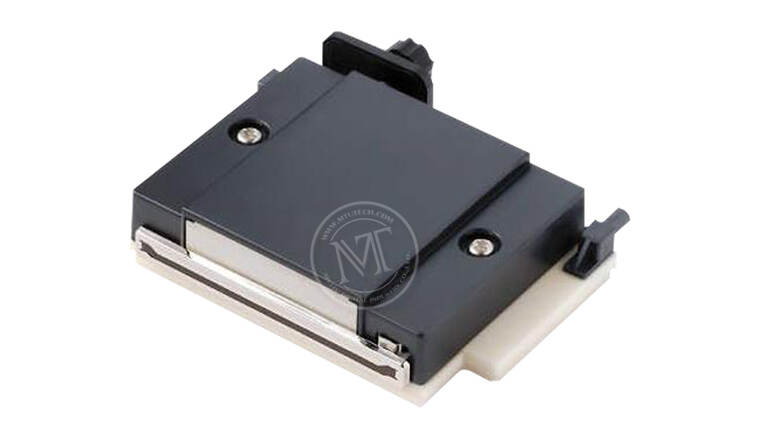

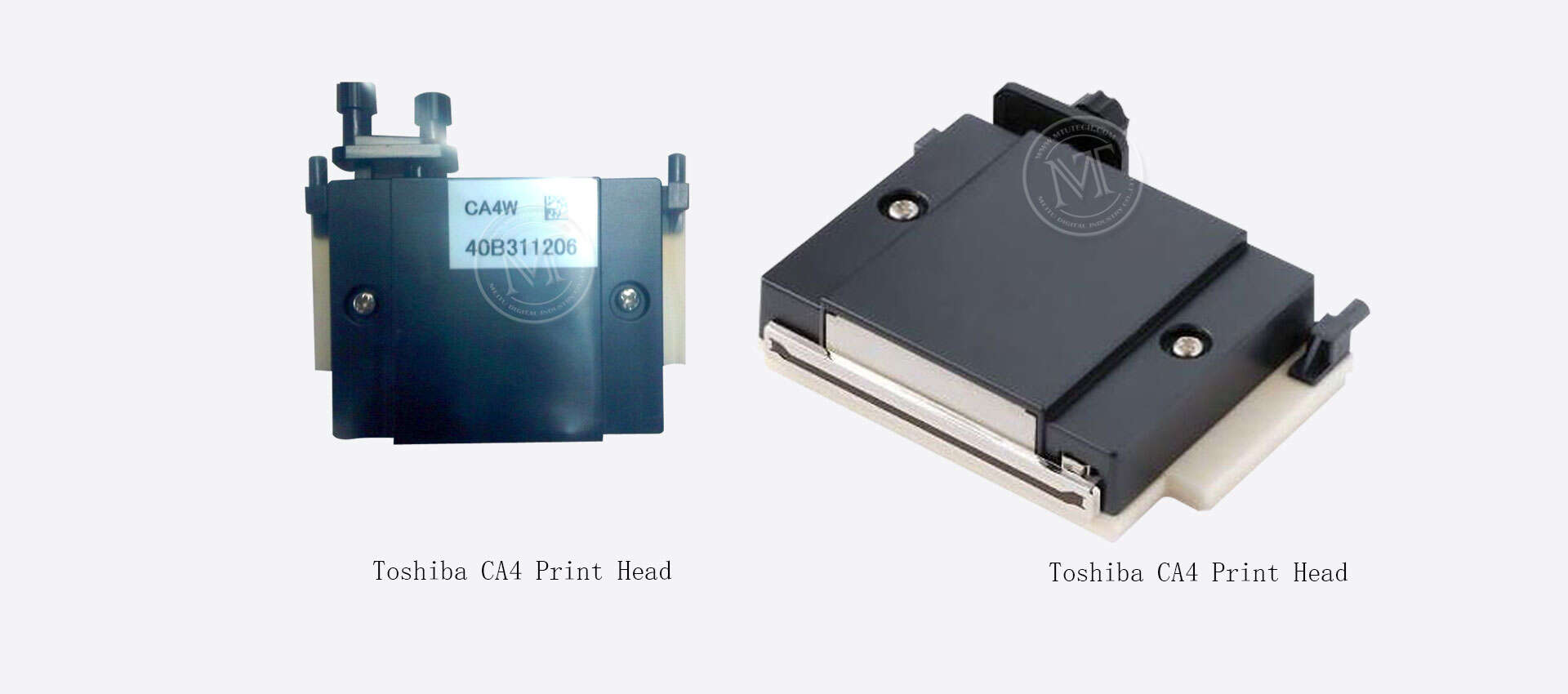

Toshiba CA4 Printhead

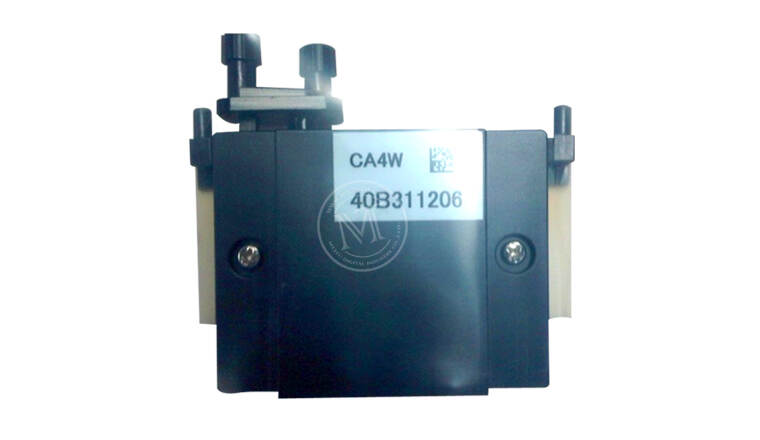

CA4W
CA4L

Toshiba CA4 is same with xaar 318 CA4,use in machine:MimakiJF-1631,JF-1610,UJV-160,JFX-1631,JFX-1631Plus,UJF-605CII,UJF-605RII, Oce Arizona 300GT,350GT,550GT,350XT,Fujifilm Acuity Advance,Acuity Advance HS,Acuity Advance HS X2,Acuity Advance LT,Acuity Advance X2
Oce arizon 550GT use CF1
