Product Introduction And Specification

Description

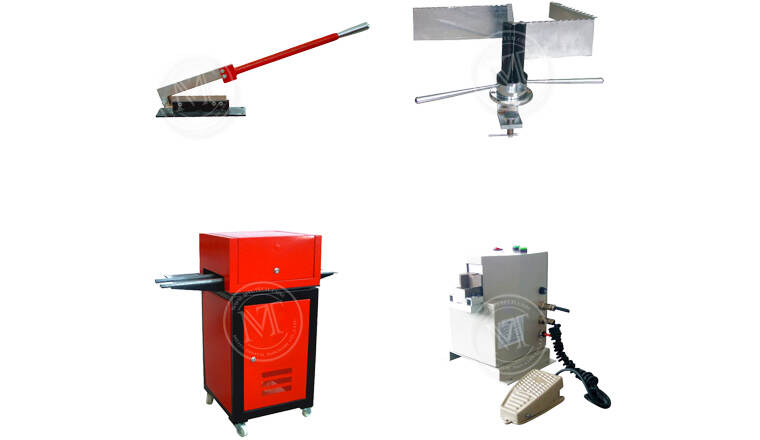

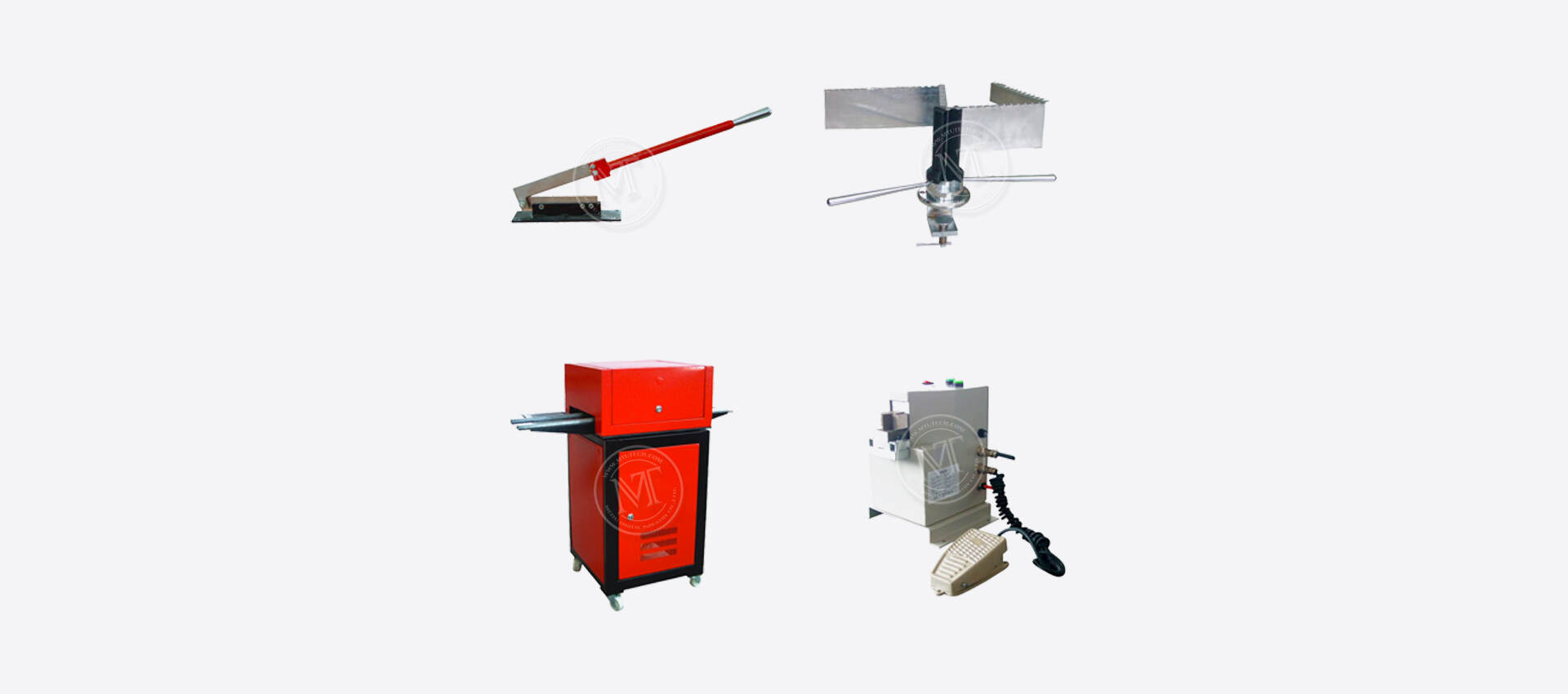

The 3D letter System includes the dentations strip punch, flanging machine, metal sheet cutter and folder.

1. Punching machine

Punching machine is for solid character dentations strip frame punch. Driven by pneumatic system, the machine brings efficiency to this manual work before. It is convenient for inside operation as it is light enough to be taken with.

2. Dentations Strip Punch

This is for solid character dentations strip frame punch. Driven by pneumatic system, the machine brings efficiency to this manual work before. It is convenient for inside operation as it is light enough to be taken with.

3. Folder

The folder is designed to be a simple handy tool, special for dentations strip banding. Refer to angle marks in the folder; certain degree or radian can be achieved easily and accurately. Should work together with Dentations Strip Punch.

4. Flanging Machine

Using a special flanging structure, the machine could band metal sheet in big range of thickness and width. Work together with Dentations Strip Punch & Folder, a complete product line for solid character processing system has been set up.


Product Specification




Mode TypeFlanging Machine
Rated Voltage220V   ±10%   50/60HZ
Rated Power400KW
Max. Flanging Width

260mm

Max. Flanging Thickness1.2mm
Flanging systemMono Lateral / Bilateral
Horizontal Cut

Motor drive

Shape Size1200×600×500mm
Weight

110kg

Certification

CE



Mode TypeMetal Sheet Cutter
Blade size180mm
Max. Cutter ThicknessAluminum up to 1.5mm,Stainless Steel up to 0.8mm
Shape Size

120×120×260mm

Weight

5kg

Certification

CE

Mode TypeDentations Strip Punch
Rated Voltage220V   ±10%   50/60HZ
Rated Power50KW
Punching Speed

50tpm

Punch QuantitySingle/Double
Max. Punching Thickness

Aluminum up to 1.5mm, Stainless Steel up to 0.8mm

Air Requirement

5 bar

Shape Size190×170×250mm
Packing Size230×300×310(mM)
Weight

6kg

Certification

CE

Mode TypeFolder
Max. Sheet width120mm(150/200 Can be customized)
Max. Sheet Thickness≤1.5mm
Shape Size

120×120×260mm

Weight

5kg

Certification

CE
