Product Introduction And Specification

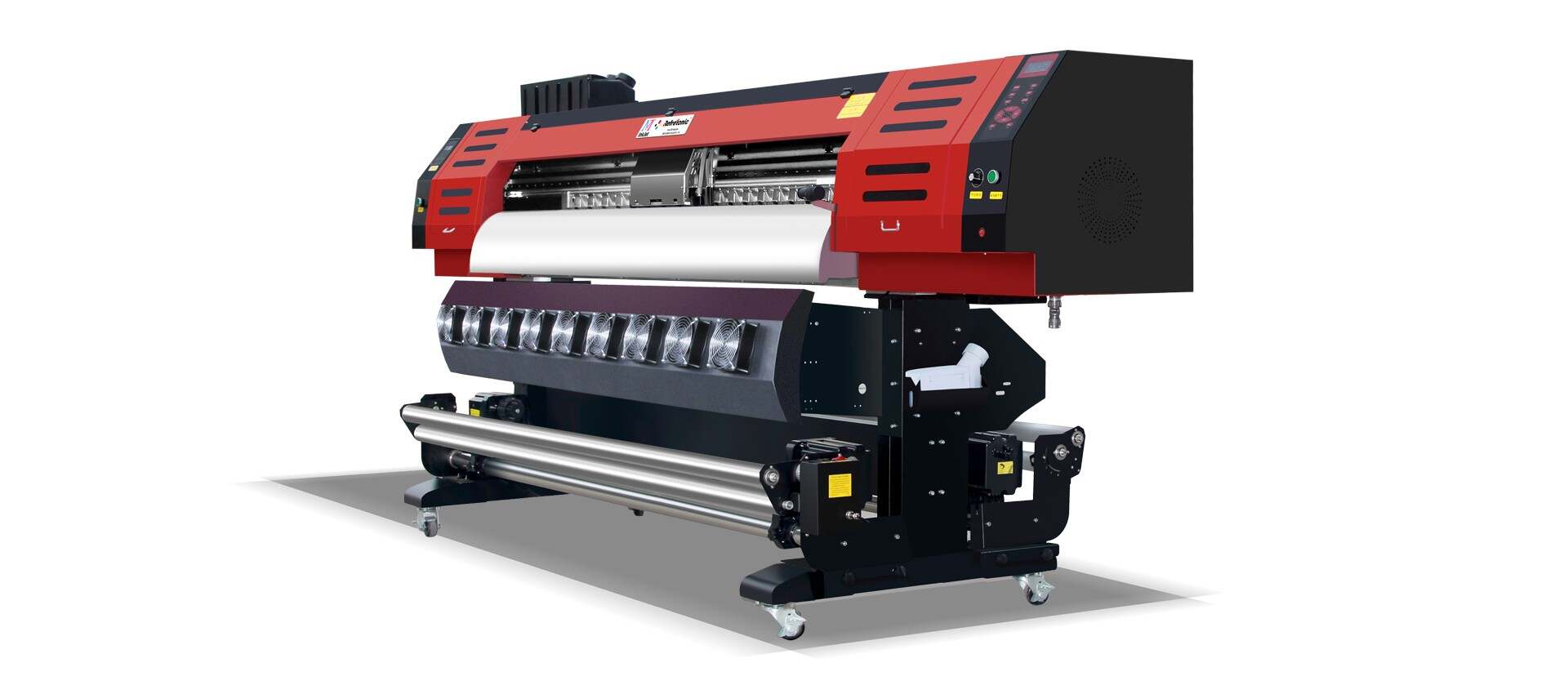

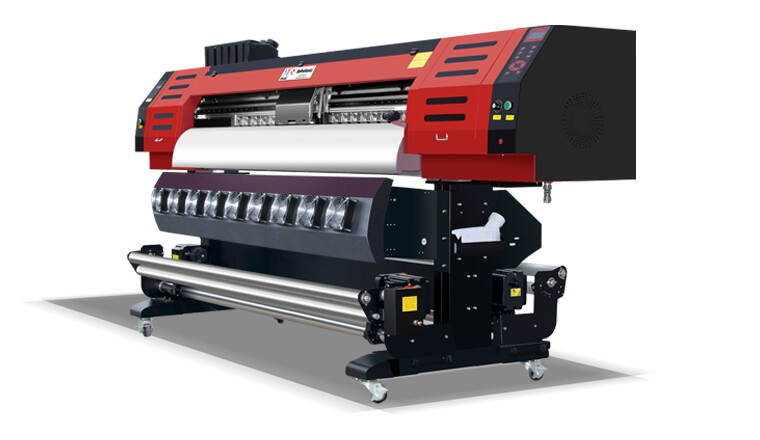

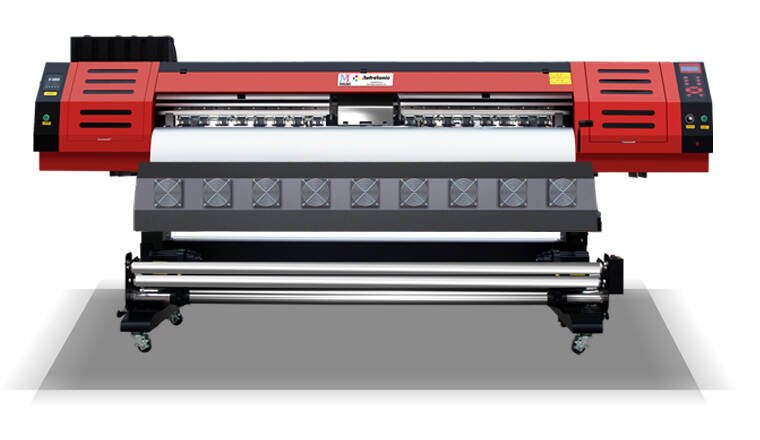

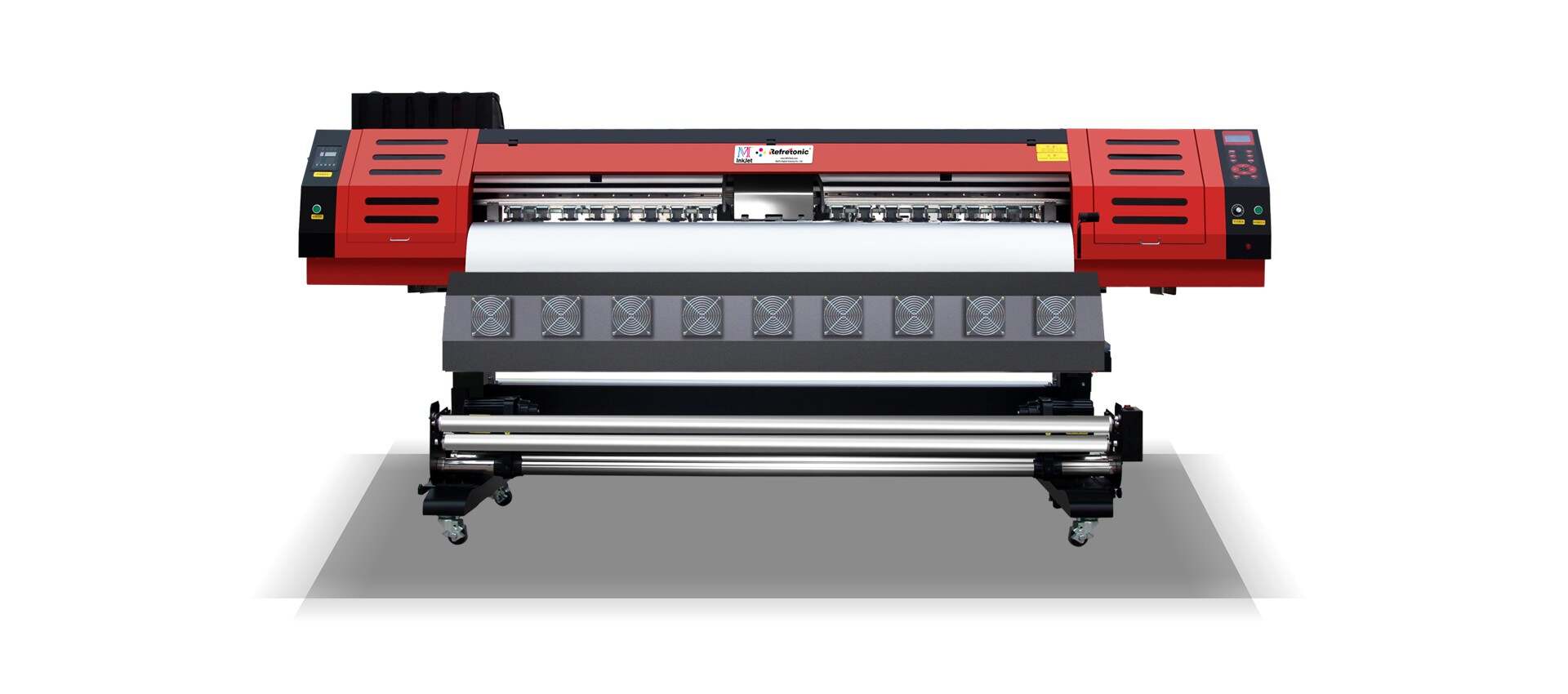

MT-4720 Water Based Printer is 2019 Deluxe Version of high precision Micro Piezo Water Based Printer which with 1.8m printing width, high-resolution printing for outdoor and indoor large format printing. The printing quality is competitive to the Japanese Water Based Printer brands like, Epson Water Based Printer, Roland Water Based Printer, Mimaki Eco Solvent Printer and Mutoh Water Based Printer. 1440dpi overturns the highest resolution of traditional solvent printers, which leads the resolution of large format printer to a new standard. Your new profit pattern will be established and new business opportunity will be discovered.


  • Piezo Water based Printer

1.This Water Based Printer equipped with four  EPS4720 printhead (two EPS4720 or three EPS4720 printheads are optional), Standard printing with double heads to meet the demand of high resolution and faster speed.

2. This Water Based Printing Machine through different quality tests, which is stable and competent enough for mass production requirement.

3. This Water Based Printer equipped with intelligent infrared heater and fan drying system.

4. The LED UV printing system is optional; you may upgrade this Water Based Printer to a LED Roll-to-Roll UV Printer once demanded.

5. This Water Based Printer adopts Aluminum-Alloy girder, which is the most strongest and smoothest than other metal materials, which ensure high precision printing quality.

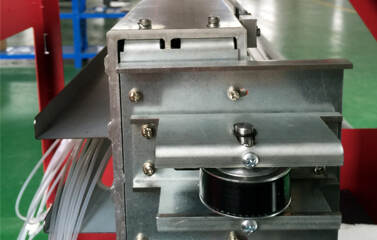

6. As a top quality Water Based Printer, MT-4720 adopts THK 20mm width linear guide rails with double-slider and sound off function, more durable and reliable for high precision printing.

  • Piezo Water based Printer

7. This Water Based Printer owns strong heavy-duty machine body (double stands and feet composite without any shake during printing) ensures stable printing and long time working.

8. We provide automatic feed in and take up system for this Water Based Printer, especially adopts all-aluminum dual power take up system to carry and collect the whole weight of media more stably and easily. Professional soft film collecting and feeding system is optional too.

9. This Water Based Printer equipped with intelligent media sensor that always tests media before media is going to running out.

10. Anti-collision system was also equipped on this Water Based Printer. When the sensor installed on the both sides of the carriage, which automatic detect any force on the carriage way going, the carriage will initiate an immediate stop to protect the printheads from unexpected damage.

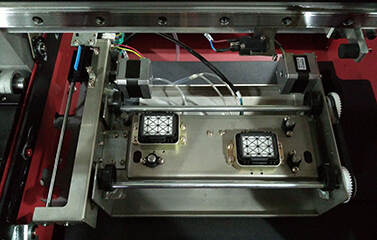

11. Automatic capping system is easy operation and maintenance for our Water Based Printer.

12. Bulk ink supply system is standard option for this Water Based Printer, which is setting on the top of printer, easy to monitor ink level and easy ink refill.

  • Piezo Water based Printer

13. This Water Based Printer adopts USB 2.0 interface control system that get better large data transfer and anti-signal interference. Otherwise, it is also supporting windows7/64bit system.

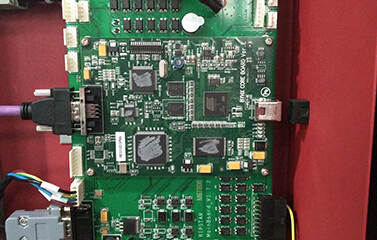

14. This Water Based Printer adopts metal optical cable, which connects from mainboard to carriage board to make sure fast and stable data transit.

15. This Water Based Printer equipped with two original Leadshine Motor Control, which provide more stable quality and better efficiency during printing.

16. This Water Based Printer adopts new variable size droplet technology, six or more variable droplet printing size provide the highest printing resolution up to 2880dpi.

17. This Water Based Printer benefit from VSDT technology, the smallest droplet can reach to 1.5pl and the maximum can reach to 27pl, which presenting perfect printing quality.

18. As the top quality Water Based Printer in China, MT-4720 also adopts widened 65mm Multi-touch pinch roller system instead of 40mm pinch roller, which is 25mm wider than normal pinch roller. This 65mm pinch roller system can provides excellent control of media feeding; ensure high precision of large format  printing.

Product Specification

Mode TypeEPS4720 Water Based Printer MT-4720

2/3 EPS4720 Printheads Are Optional

Number of Nozzles1440 Nozzles X 3  EPS4720 Printheads
Color4 Colors:Cyan, Magenta, Yellow, Black
Resolution1440dpi (max.)
Printing Speed3pass83.0sq.m per hour
4pass62.0sq.m per hour
6pass41.0sq.m per hour
Media FeederYes
Media Take-upYes
MaterialMax. Weight70kg
Application Type

Flex,Banner,Knife Coated Substrate,Double Side Banner,PVC,Advertising Cloth,Wall Paper,Car Wrapping,Poster,Adhesive Vinyl,One Way Vision,Mesh,Reflective Banner,Reflective Vinyl,Eco Solvent Media

InkTypeEco solvent Ink
Ink Tank Reservoir Capacity4 * 1.5 Liter bulk continuous ink supply system
Auto cleanning systemAuto cleanning system with anti clogged flash spray & moisturizing function
Picture drying systemfan drying system, infrared heating
Media AdsorptionMulti-section Intelligent Suction System With Adjustable Strength
InterfaceHigh Speed USB Transmission USB2.0/3.0
PowerPower VoltageAC220V 50-60HZ
Control SoftwarePrint Console
RIP SoftwareMaintop (Photoprint Wasatch Optional)
Three heating sectionsPre-heater, printing bed heater, rear heater
Operation SystemMS Windows XP, Windows 7
Printing EnvironmentTemperature 18-32 Degrees,  Humidity 46-65 Rh
Picture TypeJPG PSD TIFF
Printer Dimension

3160 * 850 * 1480mm

Packing Dimension3330 * 760 * 1020mm
Net Weight350kg
Gross Weight400kg
